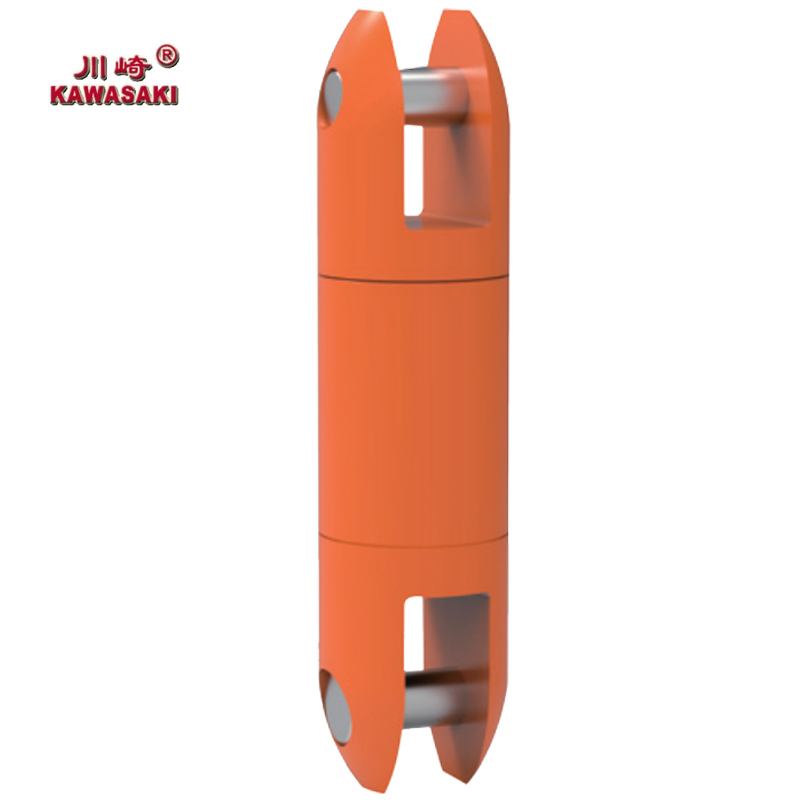

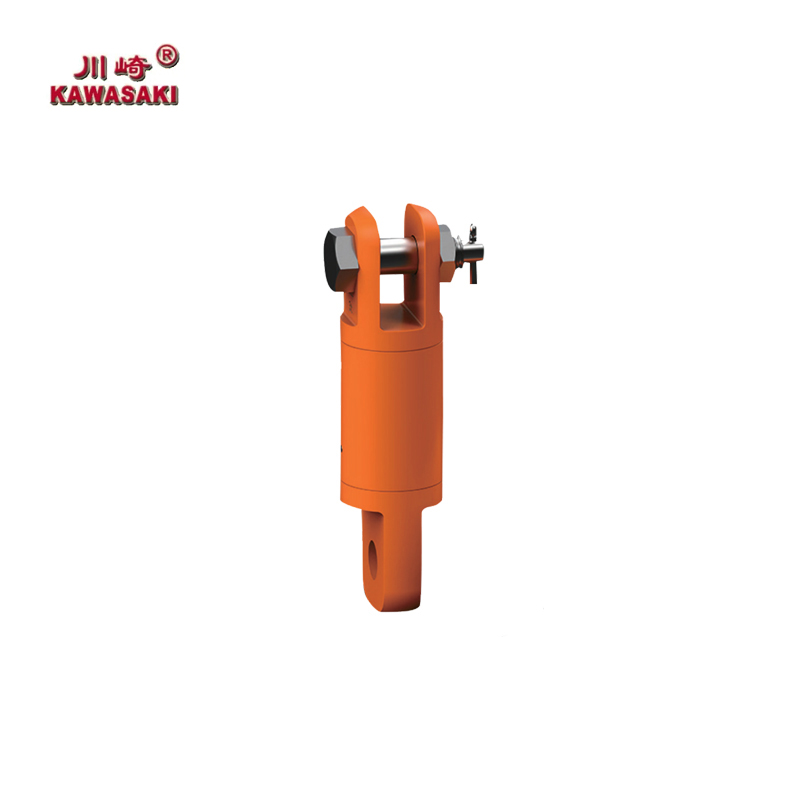

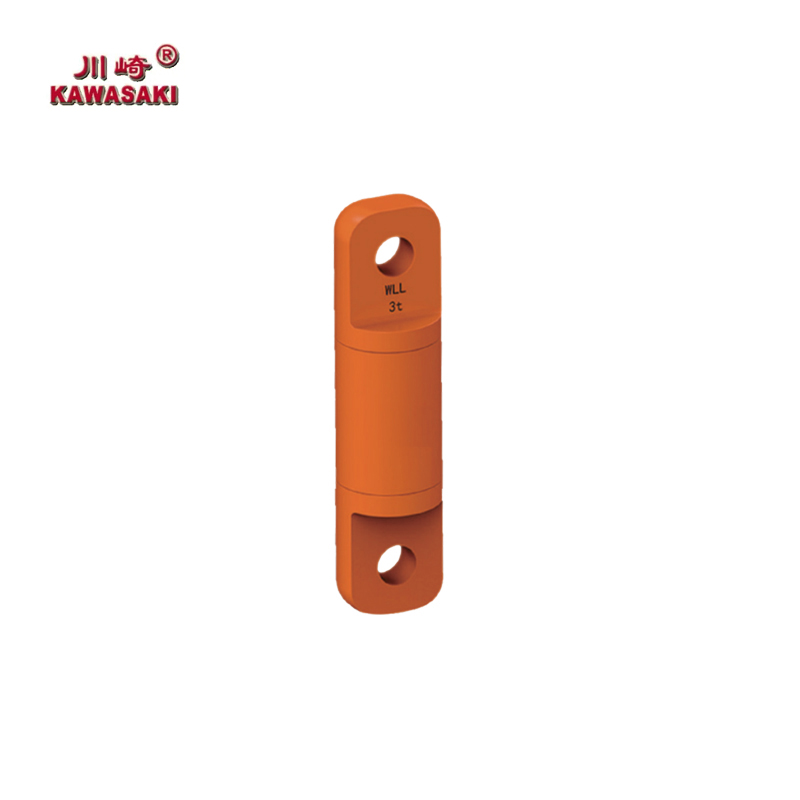

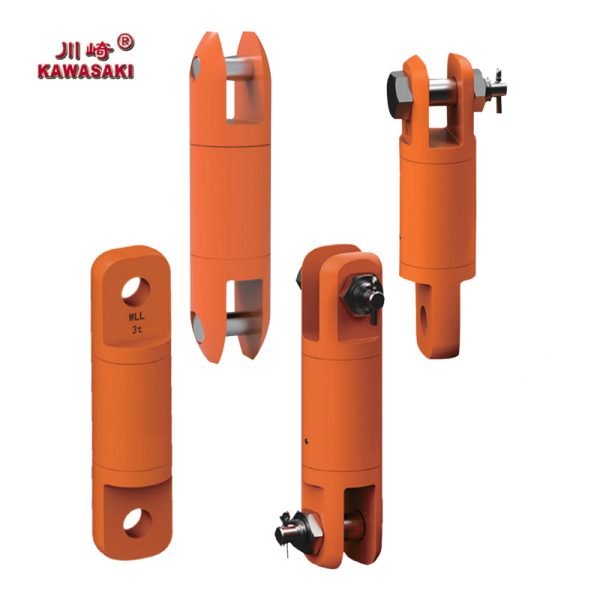

KAWASAKI SWIVEL HOIST RINGS WLL

KAWASAKI SWIVEL HOIST RINGS WLL

Product details

Product details

Swivels made of special alloy steel with precision forging, it had high processing performance after special heat treatment process.
Working tensile is the same in any direction, safety factor is 4:1.
Built-in grease nozzle for easy maintenance, so that the product has better performance.
The surface is coated with epoxy resin, which prevent surface corrosion effectively.

ITEM NO.	SIZE	WLL/T	Dimensions / mm								Weight Kg
ITEM NO.	SIZE	WLL/T	B	K	L	C	A	D	G	H	Weight Kg
086-007	0.75	0.75	34	107	133	13	15	10	6	22	0.5
086-015	1.5	1.5	40	119	159	20	18	13	8	26	0.9
086-030	3	3	53	160	210	25	23	19	10	32	2.3
086-050	5	5	67	203	267	32	32	22	14	37	4.4
086-085	8.5	8.5	78	250	326	36	40	30	14	54	7.6
086-100	10	10	106	310	410	50	42	38	25	54	19.5
086-150	15	15	119	320	440	60	48	38	25	57	21.7
086-250	25	25	137	405	535	65	62	50	30	70	39.5
086 – 350	35	35	154	415	545	65	62	50	33	70	46.2
086 – 600	60	60	270	670	890	110	100	80	75	120	352

ITEM NO.	SIZE	WLL/T	Dimensions / mm							Weight Kg
ITEM NO.	SIZE	WLL/T	B	K	L	C	A	D	H	Weight Kg
087-007	0.75	0.75	34	107	131	12	15	10	22	0.5
087-015	1.5	1.5	40	119	151	16	18	12	26	0.8
087-030	3	3	53	160	210	25	23	16	32	2
087-050	5	S	67	205	267	31	32	22	37	3.9
087-085	8.5	8.5	78	246	316	35	37	24	50	6.7
087-100	10	10	106	316	408	46	42	38	53	18.6
087-150	15	15	119	330	426	48	48	38	56	19.9
087-250	25	25	137	403	525	61	62	50	69	36.5
087-350	35	35	154	423	545	61	62	50	69	47.6

ITEM NO.	SIZE	WLLIT	Dimensions / mm							Weight Kg
ITEM NO.	SIZE	WLLIT	B	K	L	1	T	1	W	Weight Kg
088-007	0.75	0.75	34	107	133	13	12	10.5	35	0.5
088-015	1.5	1.5	40	119	159	20	15	13.5	46	0.9
088-030	3	3	53	160	210	25	20	20	57	2.1
088·050	5	S	67	203	267	32	26	33	69	4.3
088-085	8.5	8.5	78	250	326	38	32	37	92	7.3
088-100	10	10	106	310	410	50	42	44	104	17
088-150	15	15	119	320	440	60	49	54	117	21.2
088-250	25	25	137	405	545	70	60	66	140	39
088-350	35	35	154	415	555	70	60	66	140	45.8
088-600	60	60	270	670	890	110	75	80	230	253

ITEM NO	SIZE	WLL/T	Dimensions / mm											Weight Kg
ITEM NO	SIZE	WLL/T	B	K	L	A	G	D	H	T	1	W	1	Weight Kg
089-007	0.75	0.75	34	107	133	15	6	10	22	12	10.5	35	13	0.5
089-015	1.5	1.5	40	119	159	18	8	13	26	15	13.5	46	20	0.9
089-030	3	3	53	160	210	23	10	19	32	20	20	57	25	2.2
089-050	5	5	67	203	267	32	14	22	37	26	33	69	32	4.4
089 -085	8.5	8.5	78	250	326	40	14	30	54	32	37	92	38	7.4
089-100	10	10	106	310	410	42	25	38	54	42	44	104	50	18
089-150	15	15	119	320	440	48	25	38	57	49	54	117	60	21.2
089-250	25	25	137	405	540	62	30	50	70	60	66	140	70	40
089 -350	35	35	154	415	550	62	33	50	70	60	66	140	70	46.7
089 -600	60	60	270	670	890	100	75	80	120	75	80	230	110	302
