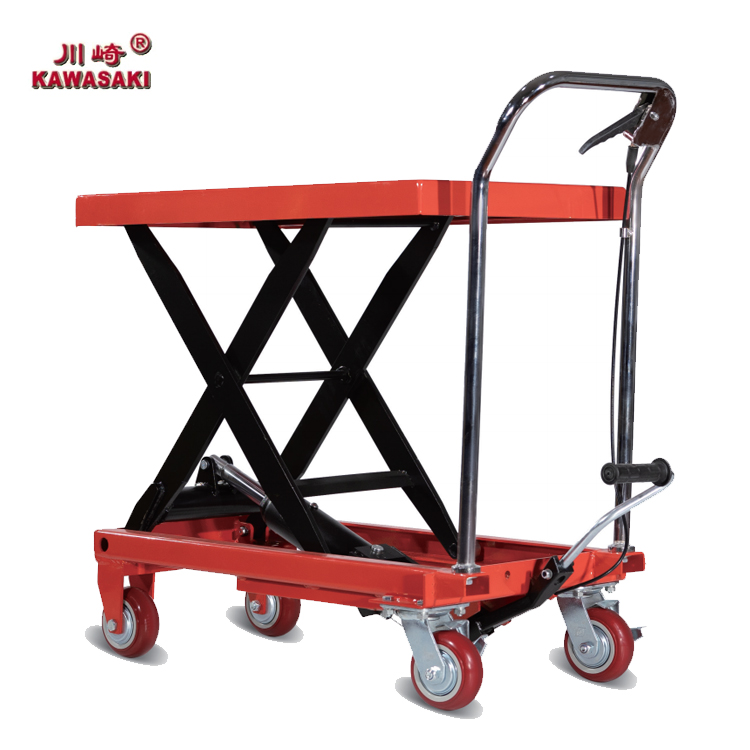

KAWASAKI SINGLE SCISSOR HYDRAULIC LIFT TABLE SLCL 150/300/500/800/1,000 KG

SLCL/SLCDL scissor lift table is the ideal tool for variety of lifting and loading operations and for use as “work station”, it represents the best solution for the manual load handling, combining functioning, cost saving, safety and health of operator during work.

Identfication	1.1	Manufacturer		Machinery
	1.2	Model		SLC150L	SLC300L	SLC500L	SLC800L	SLC1000L
	1.3	Drive		Manual
	1.4	Load capacity	kg	150	300	500	800	1000
	1.5	Scissor type		Single
	1.6	Push hand type		Fixed/foldable (optional)
	1.7	Net weight	kg	41	72	75	125	128
	1.8	Handle height	mm	1100	1100	1100	1100	1100
Lift	2.1	Max. height	mm	720	900	900	1000	1000
	2.2	Min. Height	mm	210	280	280	430	430
	2.3	Lifting distance	mm	510	620	620	570	570
	2.4	Lift function		Foot pedal
Table	3.1	Height	mm	30	55	55	55	55
	3.2	Width	mm	450	500	500	510	510
	3.3	Depth	mm	700	815	815	1000	1000
Wheels	4.1	Wheels material		Polyurethane
	4.2	Wheels locking function		Yes
	4.3	Fixed wheels	n.	2
	4.4	Swivel wheels	n.	2
	4.5	Diameter of wheels	mm	100	125	125	150	150
