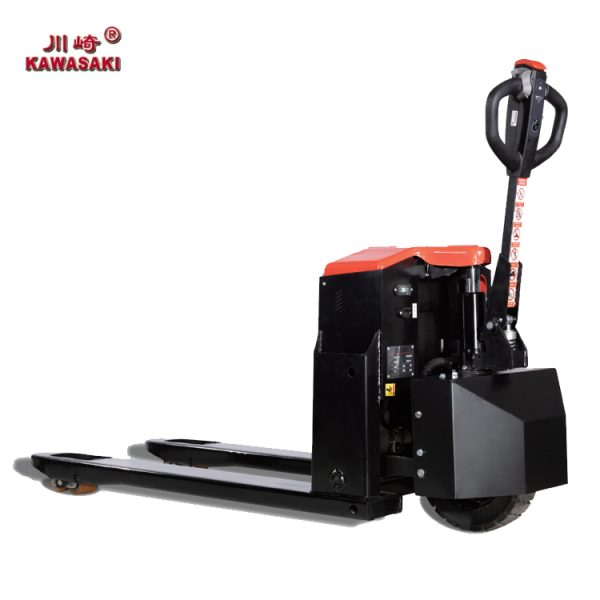

KAWASAKI ROUGH TERRAIN ELECTRIC WALKIE PALLET TRUCK HKY 2,000/3,000 KG

HKY is an ideal solution for rough terrain & heavy-duty logistics operations, the powerful drive motor is ideal for transporting pallets and goods weighing up to 3,000kg over short distances.

Handle with Ease

FOC forward/reverse thumbwheel.
Auto reverse.
Turtle mode switch.
Lifting/Lowering button.
Horn
Key

Lead-Acid Battery

48V/30Ah lead-acid battery
5 hours battery life
Available with 48V/60Ah lead-acid battery

Drive Motor

Up to 1000W brushless DC motor.
Electric brake.
Cover of driving wheel.
Cables bending tested to over 8 million cycles.

Wheels

Φ350mm Solid rubber tyre front
Optional type rear Φ80/100/110/120mm

Frame

HKY with 16# channel steel.
HKY forks with 4 full length rectangular steel tube provide added strength.

Manual Lowering (Optional)

Balance Wheel (Optional)

More stable

Easy Maintenance

HKY Series utilizes modular chasis design, error code

display, makes disassembly and assembly simple.

• 1 minute
Replace the handle
• 2 minutes
Remove the controller
• 1 minute
Replace the drive wheel
• 3 minutes
Remove the motor

Traveling Speed
• Unladen 4.2km/h
• Laden 4km/h

Identification	1.1	Manufacturer(abbreviation)		Machinery
	1.2	Model		HKY
	1.3	Drive		Electric
	1.5	Load capacity	O kg	2000/3000
	1.6	Load centre distance	C mm	600
	1.9	Wheelbase	y mm	1315	1385
Weights	2.1	Net Weight	kg	270	280
Wheels/Frame	3.2	Tyre size front	mm	ø350*100
	3.3	Tyre size rear	mm	ø80*70
	3.5	Wheels,number front/rear		1/4
	3.6	Tread width,front	mm	n/a
	3.7	Tread width,rear	b11 mm	390	520
Basic dimensions	4.4	Lift	h3 mm	110
	4.9	Height of tiller in drive position	h1 mm	1305
	4.14	Height raesed	mm	195
	4.15	Height lowered	h13 mm	85
	4.19	Overall length	l1 mm	1745	1815
	4.2	Length to face of forks	l2 mm	590
	4.21	Overall width	b5	550	680
	4.22	Fork dimensions	s/e/l mm	73/160/1150	73/160/1220
	4.25	Width across forks	b5	550	680
	4.35	Turning radius	Wa mm	1555	1625
Performance Data	5.1	Travel speed, laden/unladen	km/h	4/4.2
	5.2	Lift speed, laden/unladen	m/s	0.02
	5.3	Lowering speed, laden/unladen	m/s	n/a
	5.8	Max. grade ability, laden/unladen	%	5/18
	5.1	Brake		Electric
Electrics	6.1	Drive motor, output	kW	0.8/1.0
	6.2	Lift motor output	kW	0.8
	6.3	Battery		Lead-Acid Battery
	6.4	Battery voltage/nominal capacity	V/Ah	48/32(60)
	6.5	Battery weight	kg	32(62)
Misc.	8.1	Type of drive contorl		FOC
