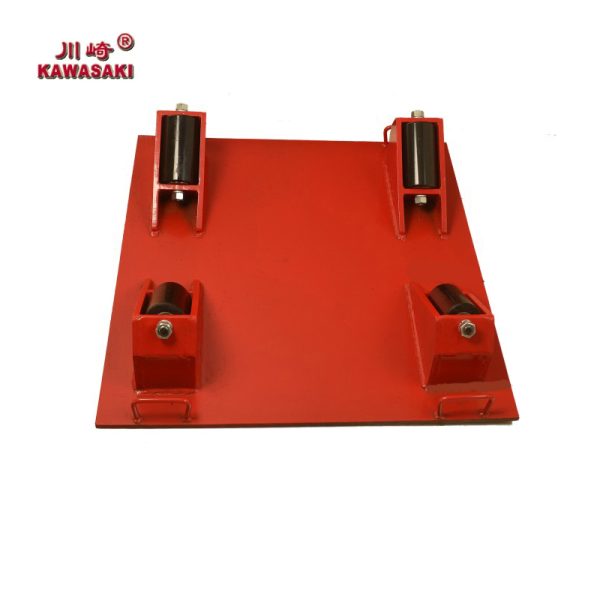

CRE suitable for all kinds of underground pipe,cylinder Cable, etc.in the external no power traction and people in case of insufficient staff, we can use this product can move heavy objects,the object can be long more than a table to use, easy to operate,fast,Save resources.Can be customized according to customer needs all kinds of mobile car.
(1) Transporting small tanks has a small volume and a large carrying capacity.
(2) Forged steel plate with strong compressive strength. The domestically produced ones are ordinary steel plates.
(3) Wheel material: Silicone resin with strong pressure resistance. It can also protect the ground and prevent oil pollution; Sliding wheels do not require maintenance and have a rubber layer on the surface to protect the material and increase friction.
(4) Stability; High load-bearing capacity, can be equipped with a control lever, and is mobile for easy steering.
(5) Easy to operate, as long as used in conjunction with a lifting tool, it can greatly save work cycles. No maintenance required, the product itself has a simple structure and does not require maintenance.
MODEL | Dimensions(length *width*height) | Normal tuclear losd | Nunber af aheels | Product weigk | Wheef nateria | Minimum distance | Maximum distance |
CRE-1 | 600×600×175 | 8 | 4 | 65 | STEEL | 100 | 600 |
CRE-2 | 800×800×175 | 12 | 4 | 85 | STEEL | 200 | 800 |
CRE-3 | 1000×1000×175 | 18 | 6 | 110 | STEEL | 300 | 1000 |
