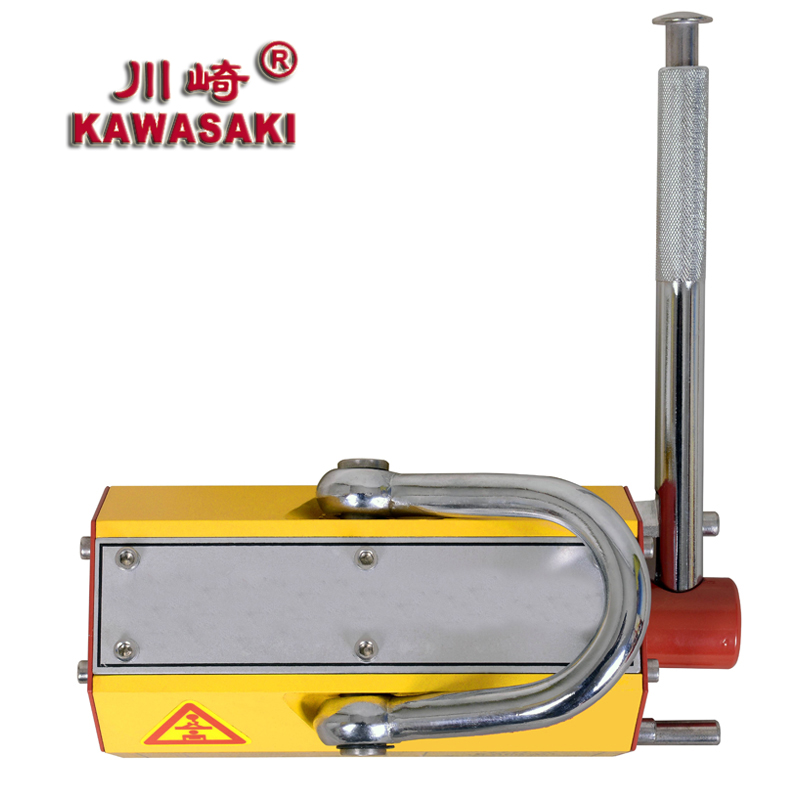

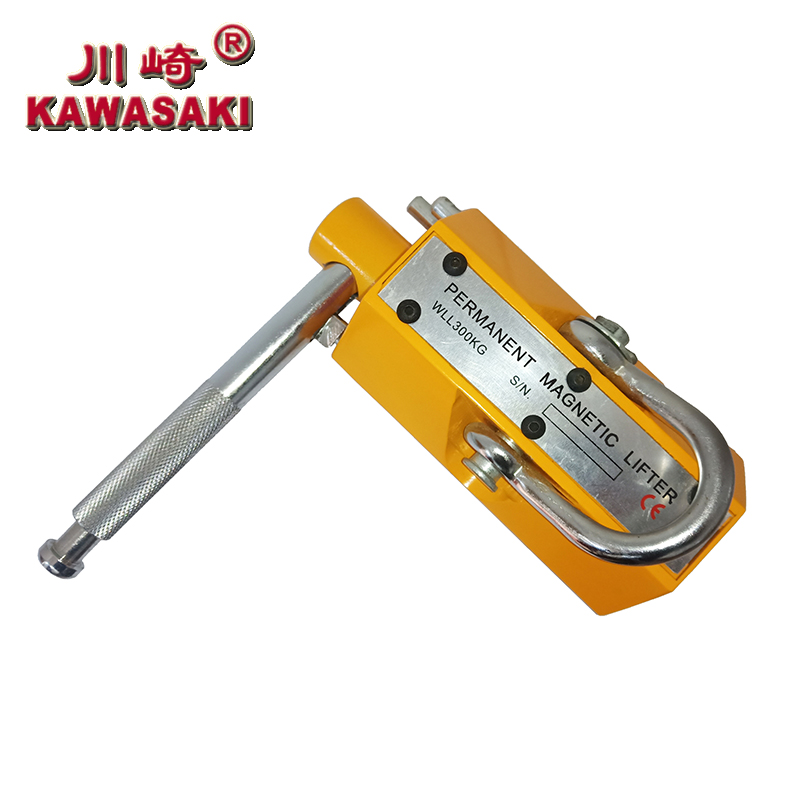

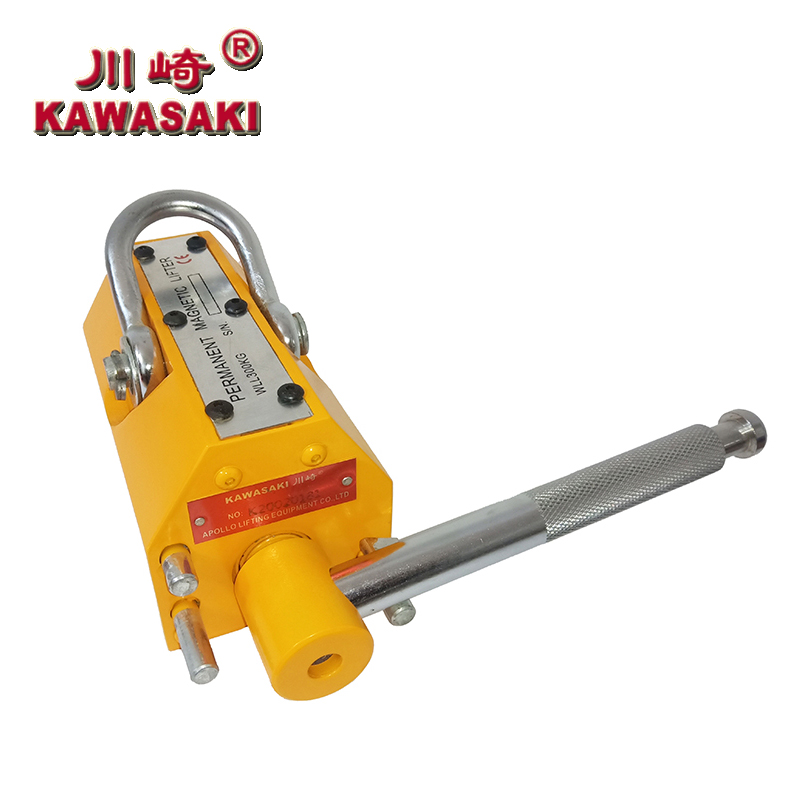

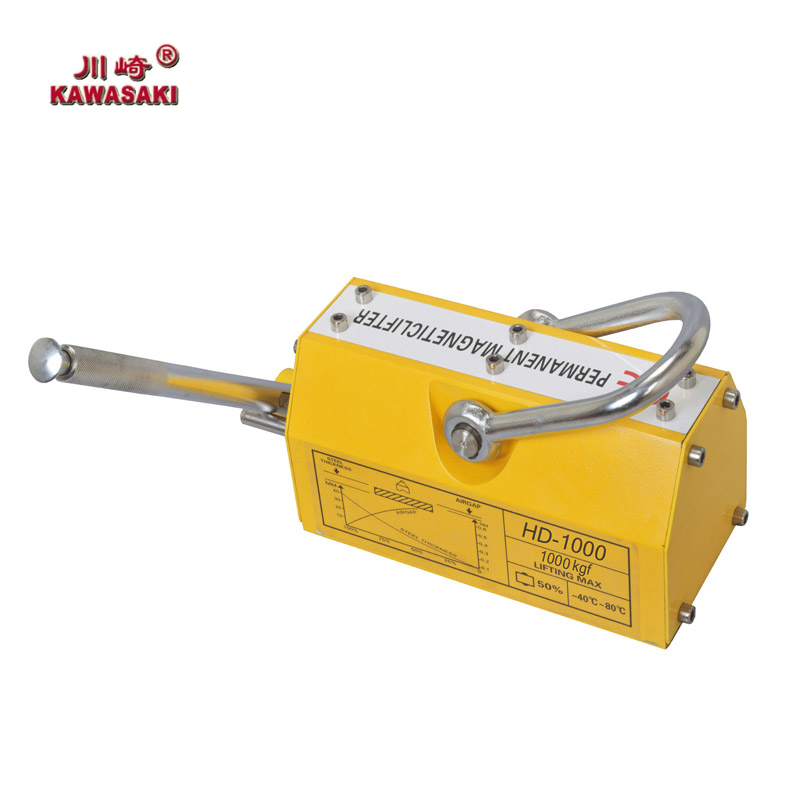

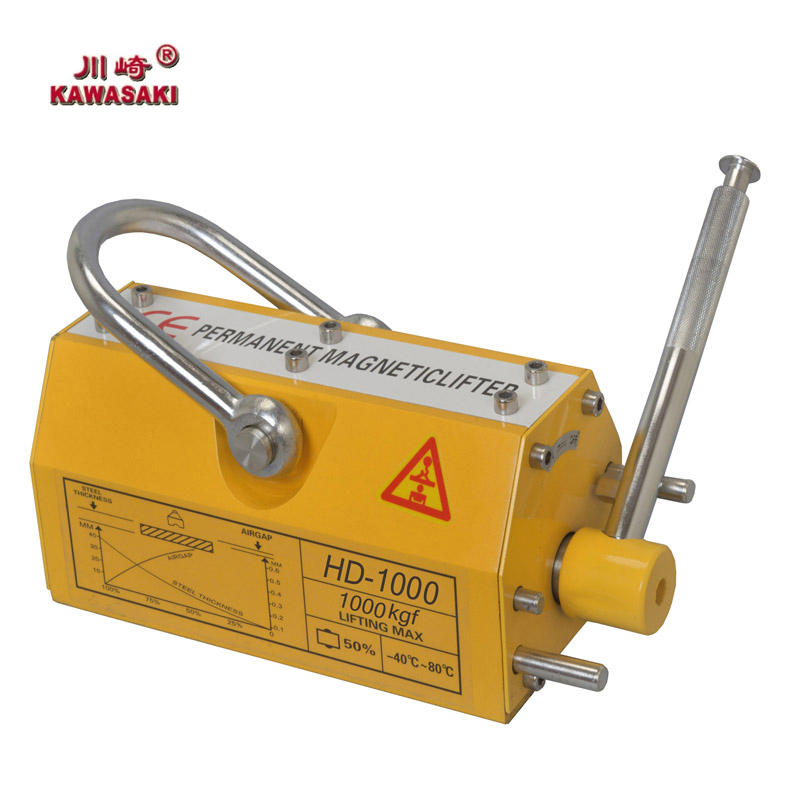

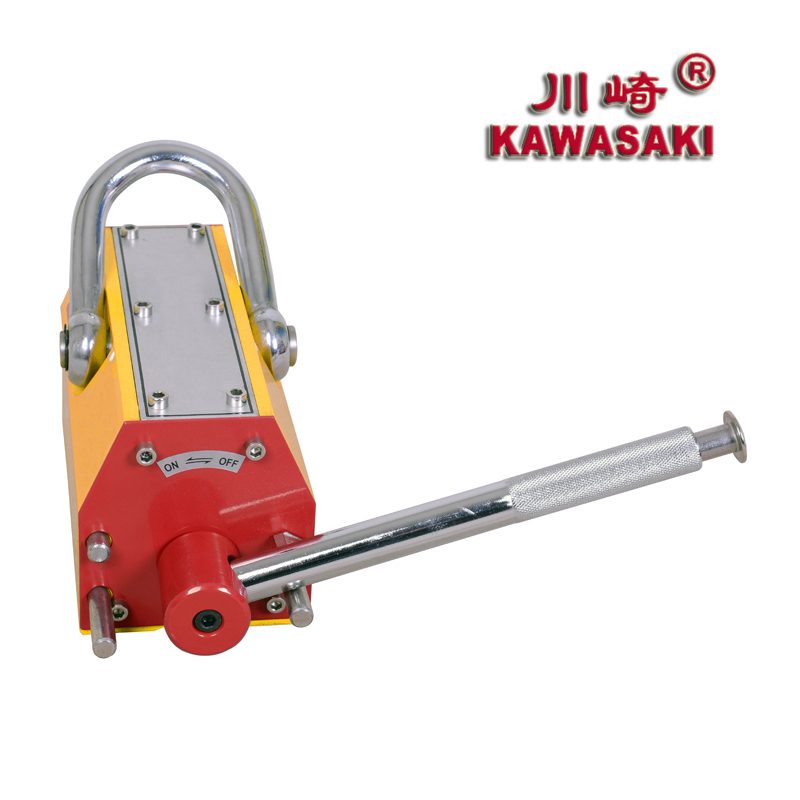

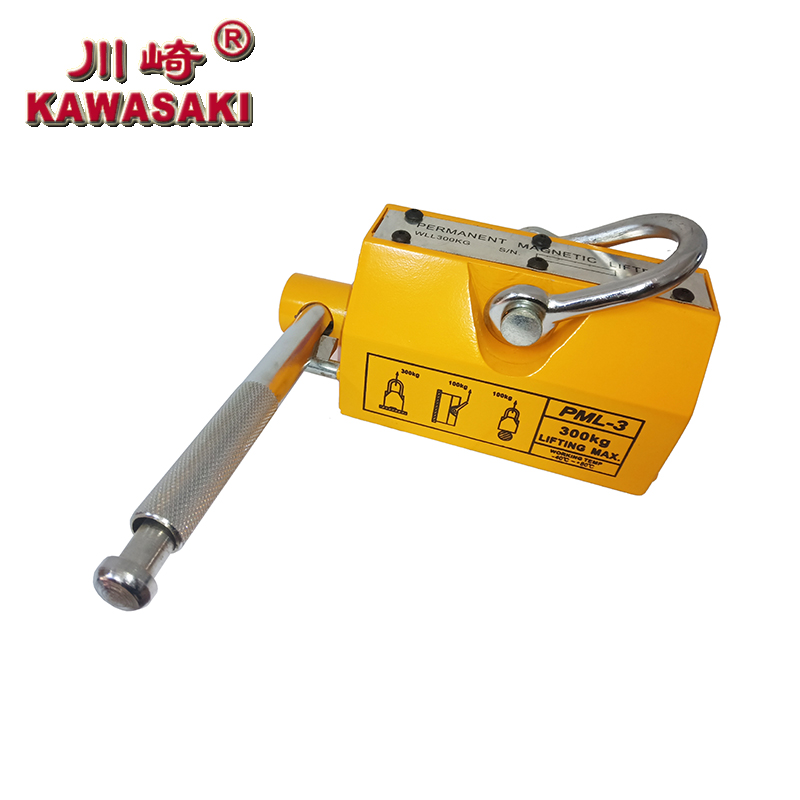

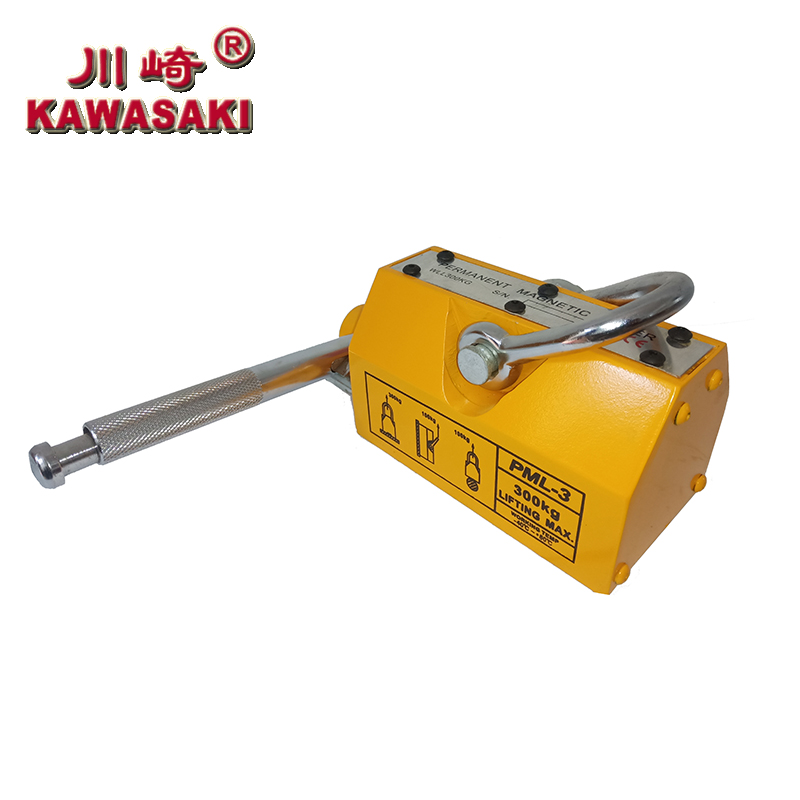

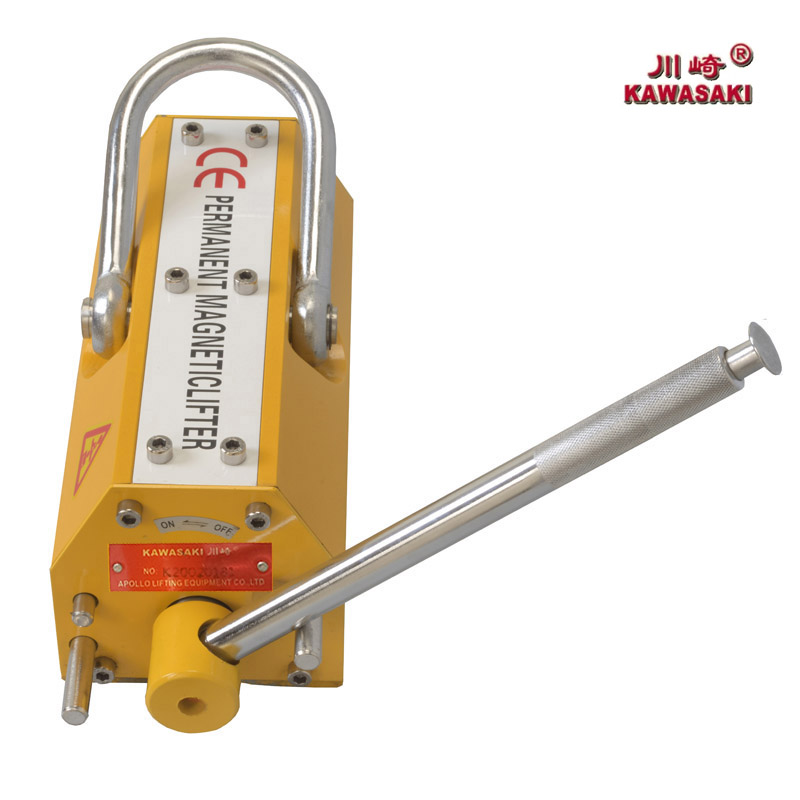

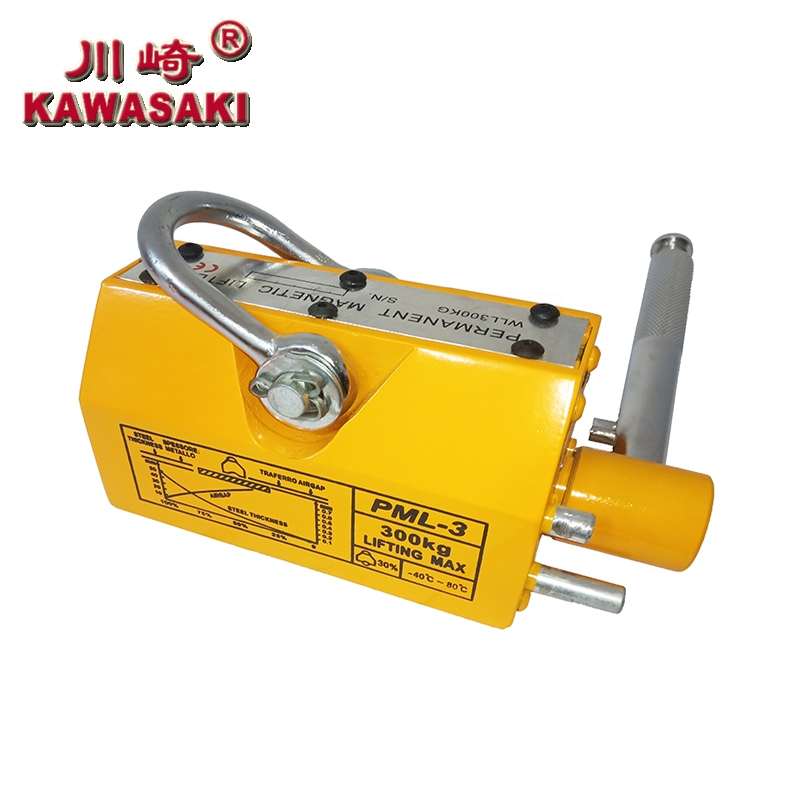

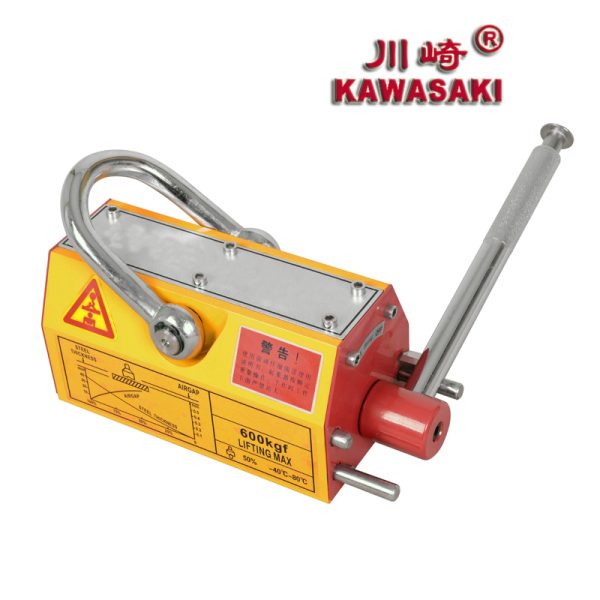

Use high-performance permanent-magnet materials Nd-Fe-B as the core, which makes it be smaller and stronger magnetism, magnetic power is stable forever. Remanence is almost zero with optimize-designed magnetism distribution. High safe coefficient, the biggest lifting capability is 3.5 times of rated. Handle switch with safety button, can operation by one hand, safe and convenient. The “V” design on surface makes it easier to lift up round and flat steel.
1. Compact structure, compact shape, easy to operate
2. High performance permanent magnetic material, non demagnetizing
3. No need for electricity or other power support during work
4. Advanced scientific magnetic circuit balance design, strong suction force, almost zero residual magnetism, safe and reliable
5. The maximum pull-out force is 3.5 times the rated lifting capacity, with a high safety factor
| Fixed power | Size | Pull off force(kg) | Net Weight(kg) | ||||||||
| Steel plate(kg) | Round steel(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | ||
| 100 | 50 | 95 | 85 | 77 | 80 | 140 | 155 | 30 | 68 | 350 | 3.5 |
| 300 | 150 | 180 | 175 | 86 | 85 | 130 | 185 | 53 | 52 | 1050 | 11.5 |
| 400 | 200 | 201 | 196 | 110 | 110 | 200 | 210 | 69 | 102 | 1400 | 18.2 |
| 600 | 300 | 221 | 217 | 115 | 125 | 217 | 235 | 69 | 102 | 2100 | 25 |
| 1000 | 500 | 295 | 291 | 142 | 140 | 270 | 265 | 82 | 140 | 3500 | 45 |
| 1500 | 750 | 313 | 352 | 145 | 152 | 280 | 350 | 100 | 134 | 5000 | 55 |
| 2000 | 1000 | 360 | 350 | 165 | 175 | 290 | 426 | 100 | 134 | 6000 | 80 |
| 3000 | 1500 | 460 | 450 | 180 | 186 | 300 | 520 | 100 | 134 | 9000 | 100 |
| 5000 | 2500 | 550 | 590 | 235 | 235 | 340 | 650 | 105 | 230 | 15000 | 240 |
