Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100
Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

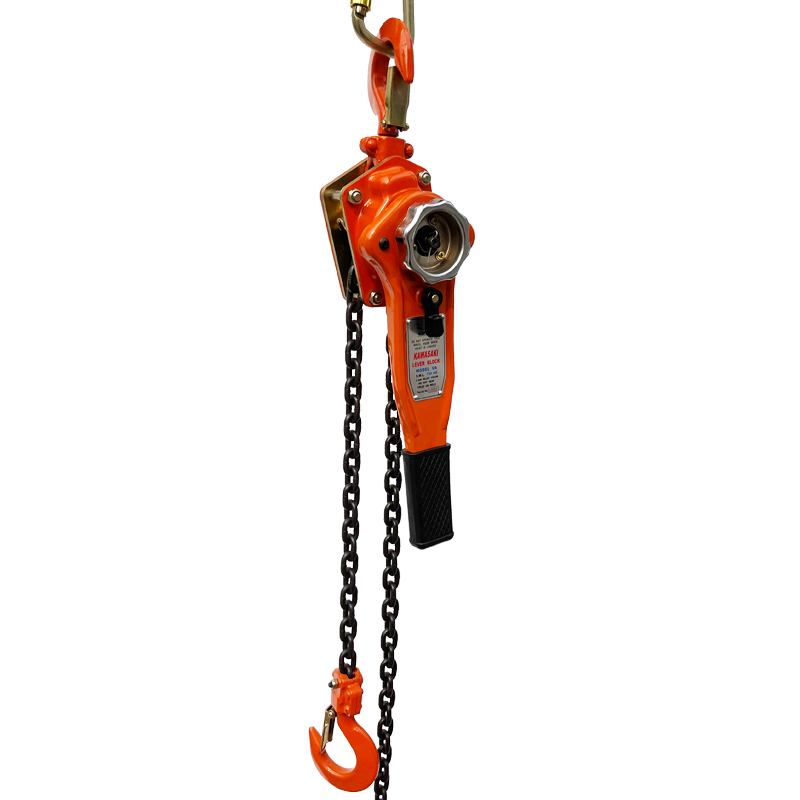

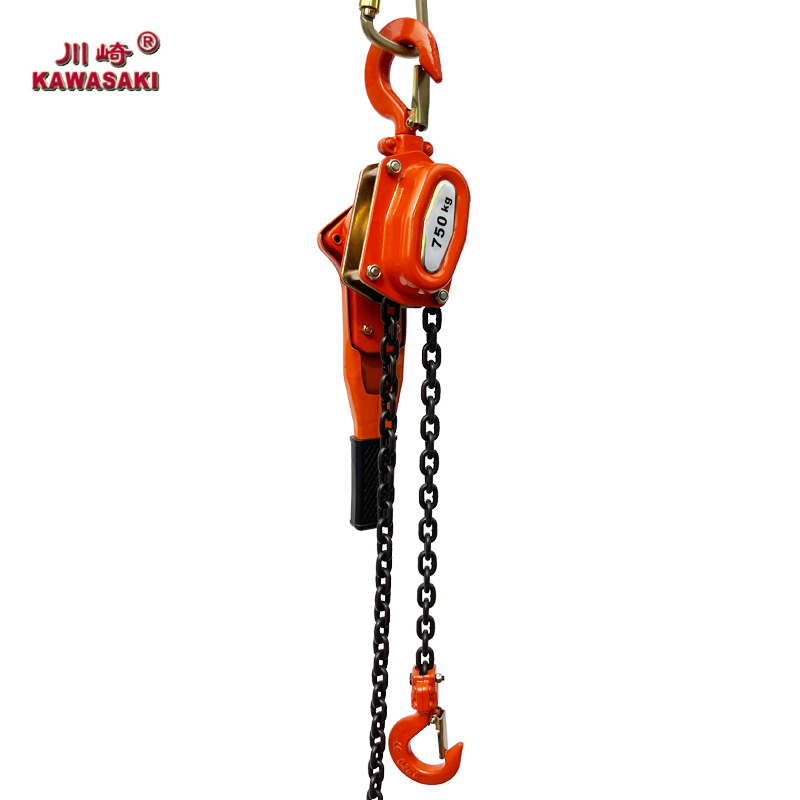

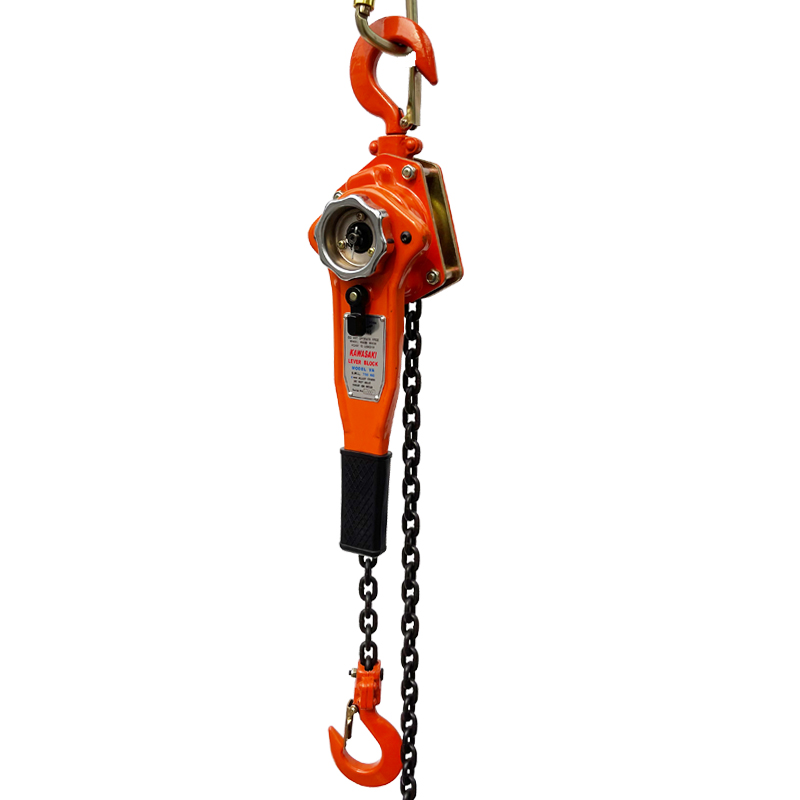

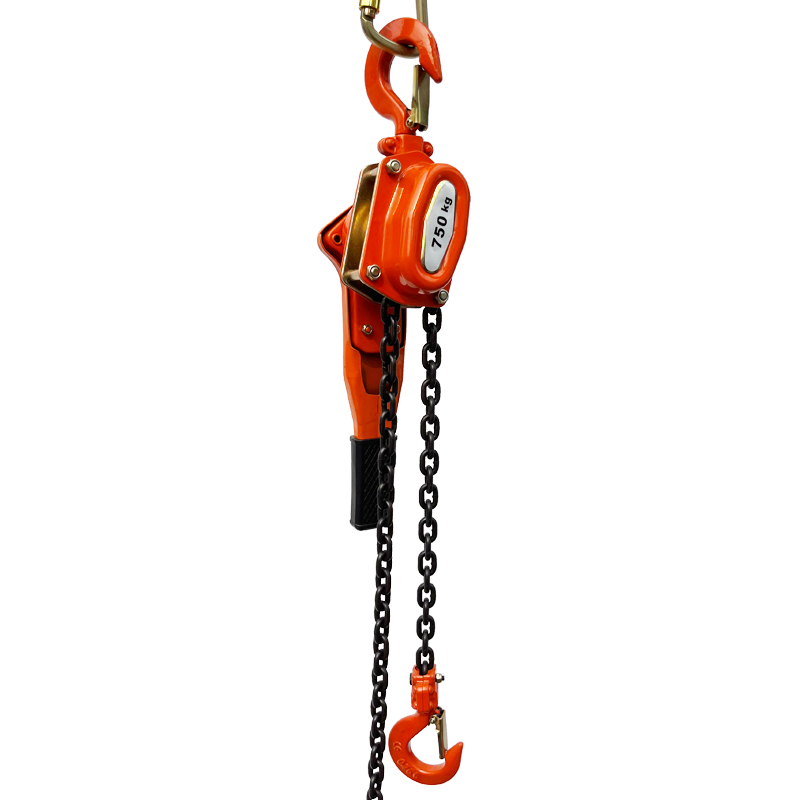

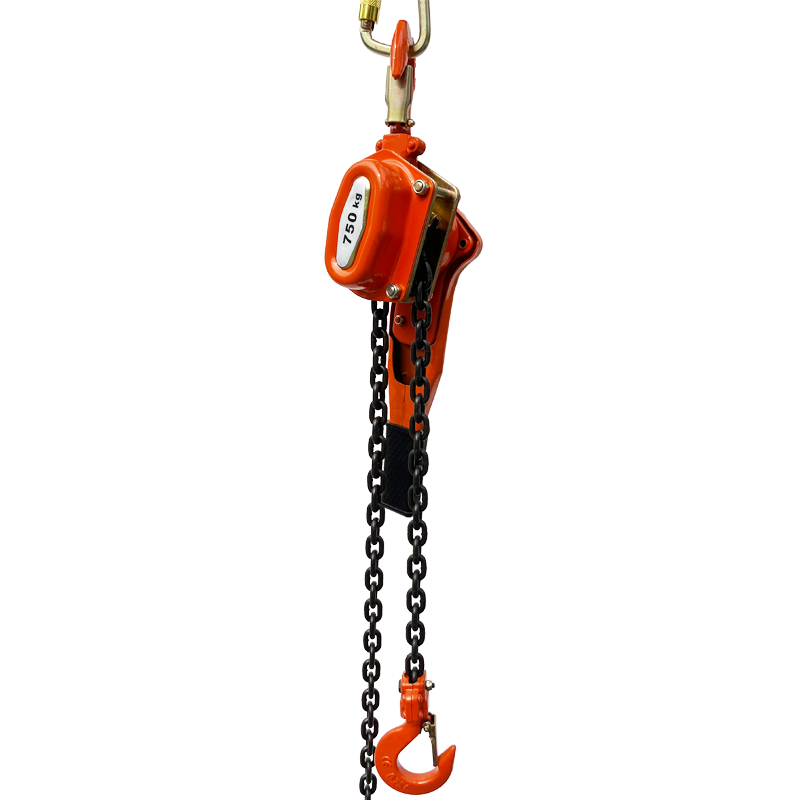

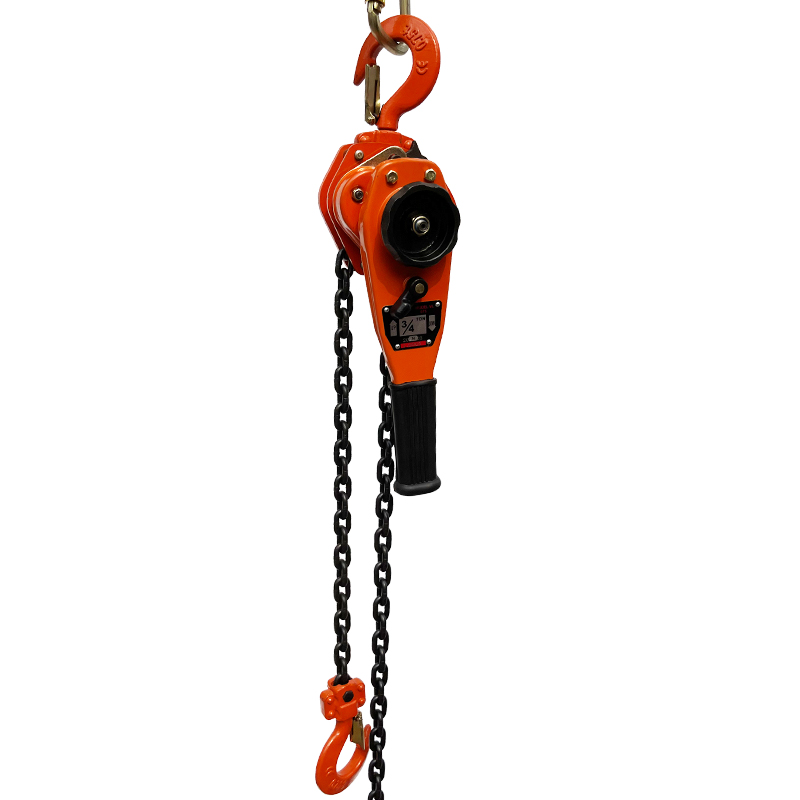

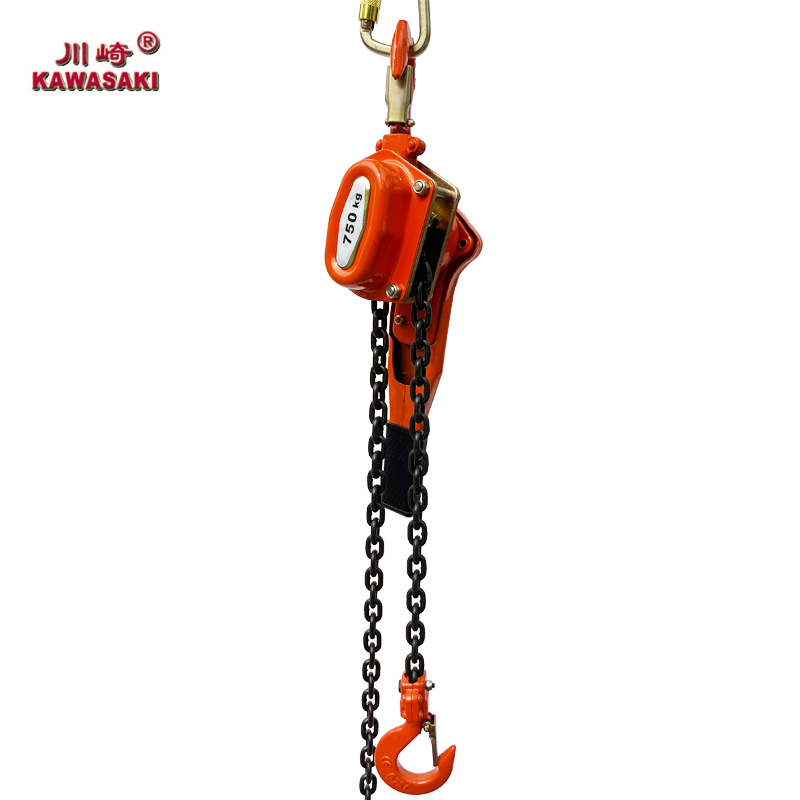

The VA Series Lever Hoist can be widely used for equipment installation, lifting and tightening goods,dragging loads in factories, mines,construction sites,power plants,boat manufacturing etc. It is an ideal device especially in narrow space, open air and overhead places for pulling and stretching at angle.
• Compact, light yet durable
•Double-pawl brake system desigend for safety and reliabilty
•Heat treated steel plates,gears and shafts for enhanced strength；Forget upper, lower hooks with forged steel safety latches; High Tensile Alloy Steel Chain
•Free-wheeling mechanism for quick chain adjustments
•Weston style automatic load brake with doble pawl load reduction
•360° rotating handle of ease of use in confined spacen
•Idling mechanism to allow fast adjustment of load chain
• Safety factor: 4 to 1
• Fatigue tested at 1.5 times of working load limit to 2000 cycles
• Standard: EN 13157
| Model | Capacity () |
Standard Lift (m) |
Running test (T) |
Effort required tolift max load (N) |
No.of falls of load chain |
Load chain diameter(mm) |
Dimension(mm) | Net weight (kg) |
Packing (L*W*H)(cm) |
|||||
| A | B | C | D | L | H | |||||||||
| VA-0.5T | 0.5 | 1.5 | 0.75 | 140 | 1 | 5 | 102 | 80 | 95 | 3.5 | 33.5*12.5*9 | |||
| VA-0.75T | 0.75 | 1.5 | 1.125 | 140 | 1 | 6 | 148 | 88 | 135 | 32 | 290 | 320 | 7 | 37*14*17 |
| VA-1T | 1 | 1.5 | 1.5 | 140 | 1 | 6 | 148 | 88 | 135 | 32 | 290 | 320 | 7.5 | 37*14*17 |
| VA-1.5T | 1.5 | 1.5 | 2.25 | 240 | 1 | 8 | 176 | 102 | 155 | 36 | 415 | 380 | 11 | 52*14*18 |
| VA-2T | 2 | 1.5 | 3 | 240 | 1 | 8 | 176 | 102 | 155 | 36 | 415 | 380 | 11.5 | 52*14*18 |
| VA-3T | 3 | 1.5 | 4.5 | 320 | 1 | 10 | 195 | 109 | 211 | 46 | 415 | 480 | 19 | 55*16*21 |
| VA-6T | 6 | 1.5 | 7.5 | 340 | 2 | 10 | 195 | 109 | 254 | 46 | 415 | 600 | 32 | 55*16*21 |
| VA-9T | 9 | 1.5 | 11.25 | 360 | 3 | 10 | 195 | 109 | 319 | 57 | 415 | 700 | 47 | 62*48.5*26 |
