Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100
Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

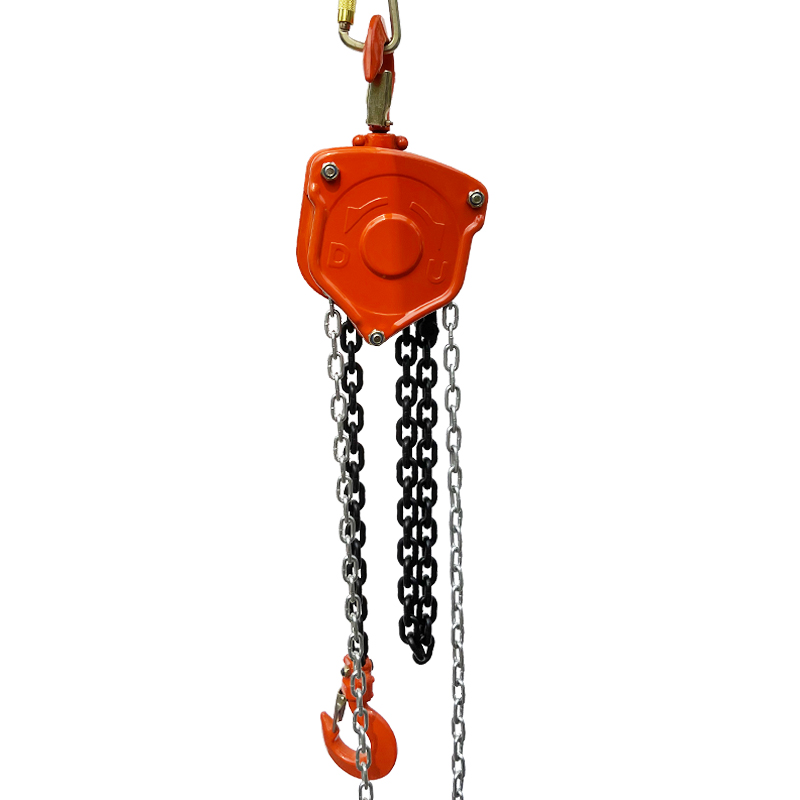

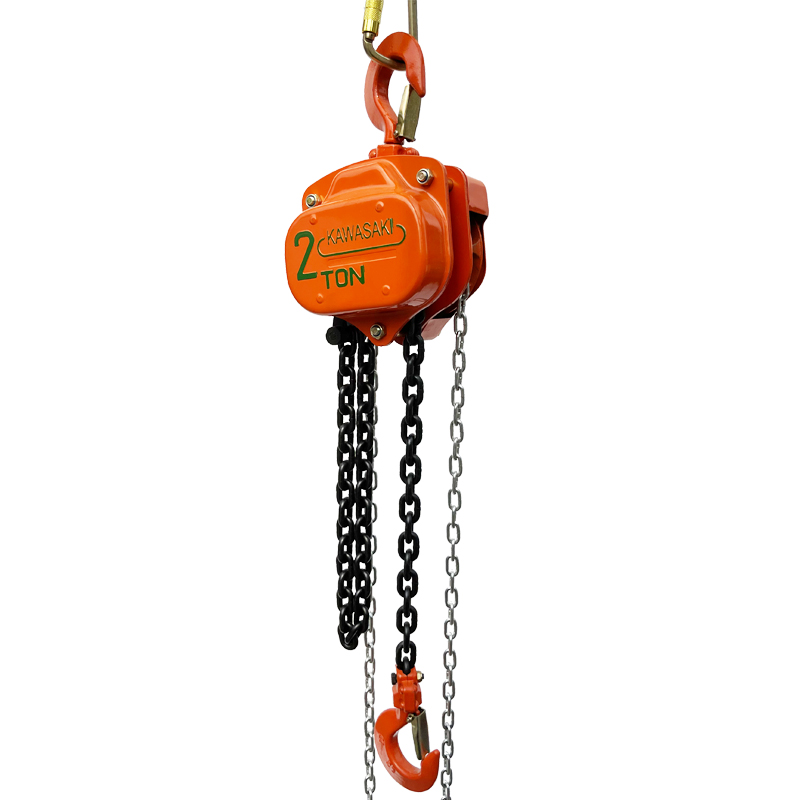

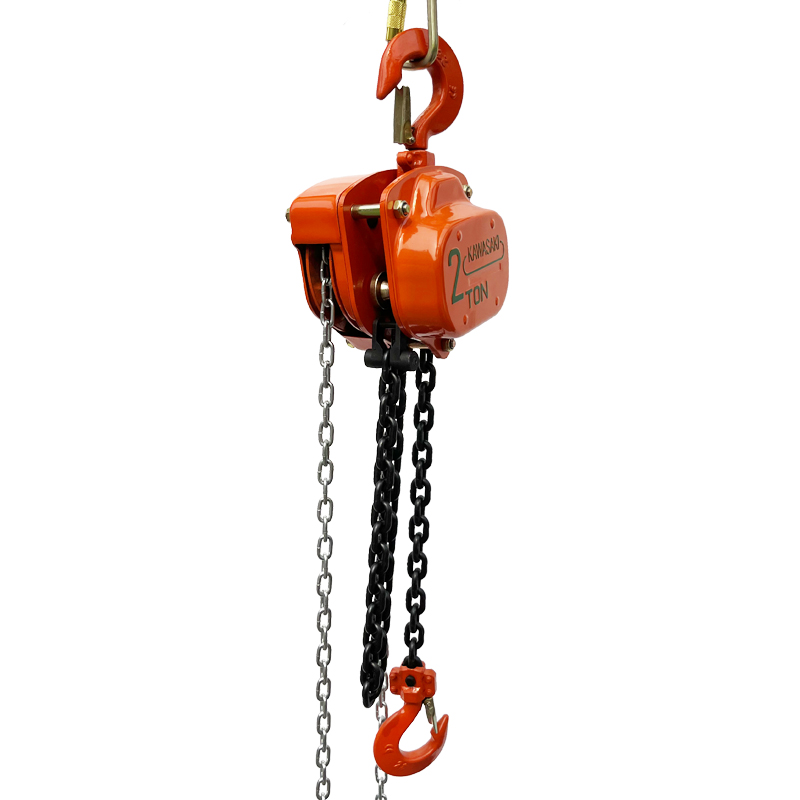

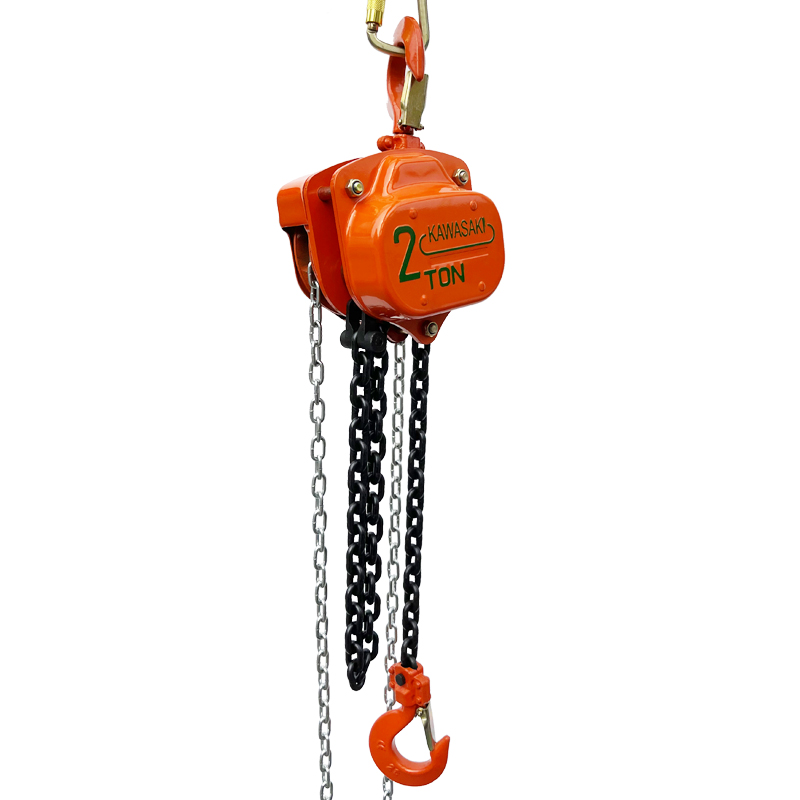

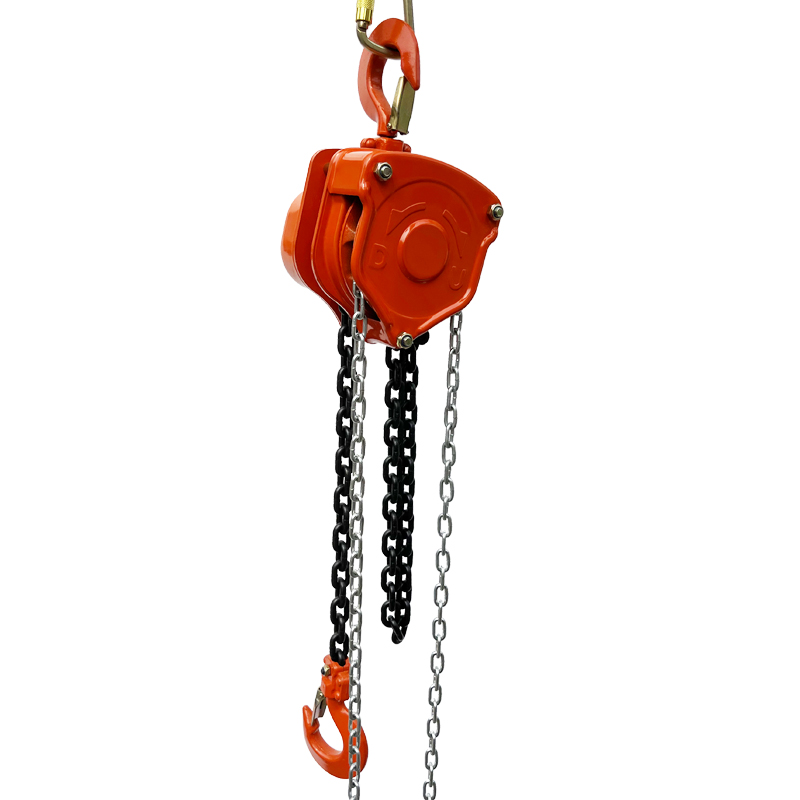

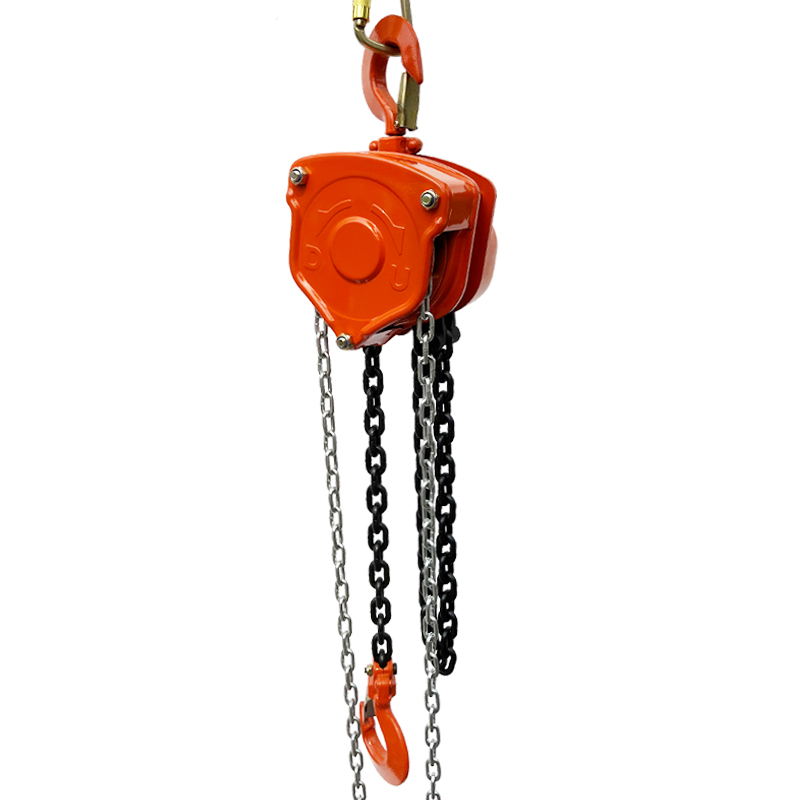

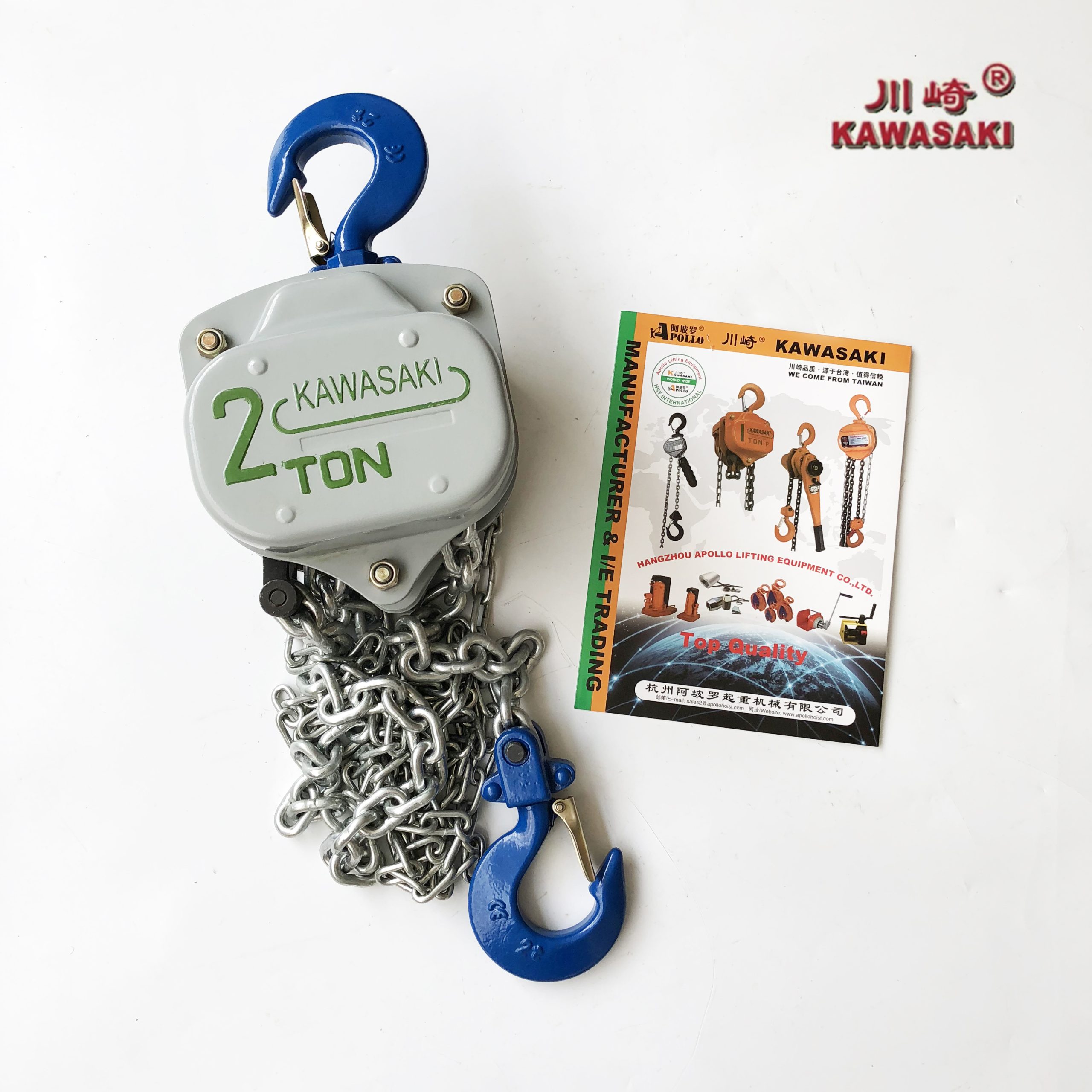

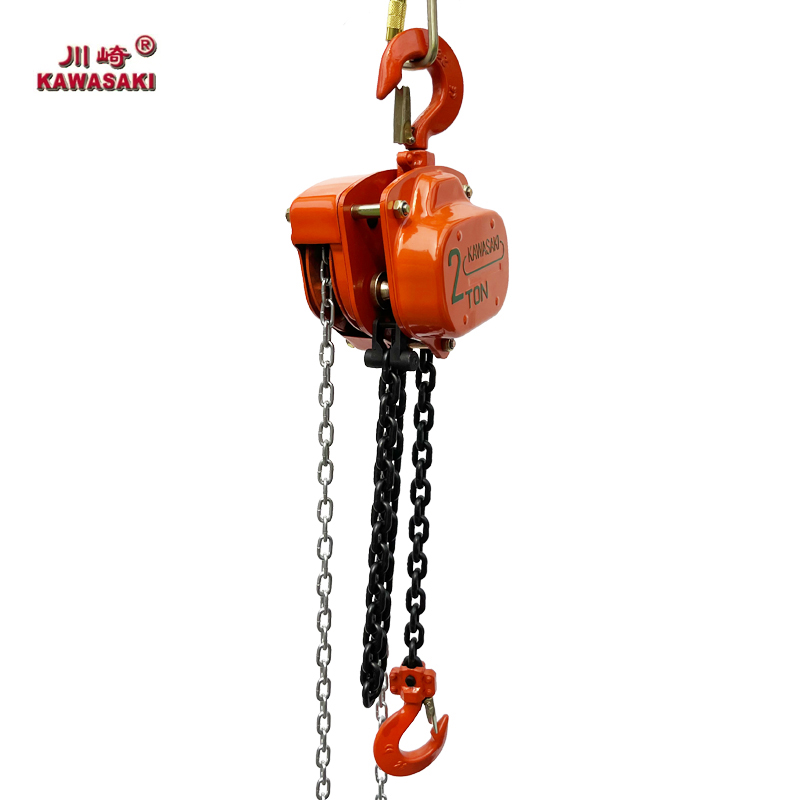

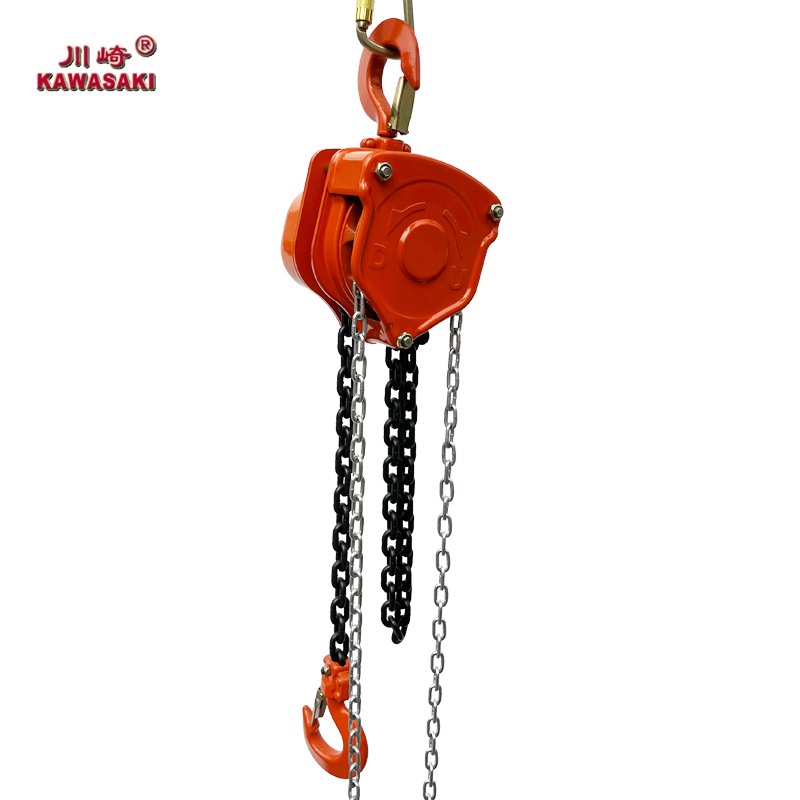

The VC Series Chain Hoist is a portable lifting device operated by hand chain. It is suitable for use in factories, mines, farms,construction sites, wharves,docks and warehouses for installation of equipment, as well as for loading and unloading goods. It is specially advantageous for lifting work in the open air and places where no power supply is available. The chain hoist can be attached to a trolly of any type as a traveling chain houst. It is suitable to monorail overhead conveying system,hand travelling crane and jib crane.
• Safe,reliable in operation with minimum maintenance
• High efficiency and small handpull
• Double-pawl brake system desigend for safety and reliable
•Heat treated steel plates,gears and shafts for enhanced strength; Forget upper,lower hooks with forged steel safety latches; High Tensile Alloy Steel Chain.
•Safety factor: 4 to 1
• Fatigue tested at 1.5 times of working load limit to 2000 cycles
• Standard: EN 13157
| Model | Capacity (T) |
Standard Lift (m) |
Running test (T) |
Effort required to lift max load(N) |
No.of falls of load chain |
Load chain diameter(mm) |
Dimension(mm | Net weight (kg) |
Packing (L*W*H)(cm) |
|||
| A | B | D | H | |||||||||
| VC-0.5T | 0.5 | 2.5 | 0.75 | 350 | 1 | 5 | 126 | 145 | 28 | 285 | 8.4 | 22*14*15 |
| VC-1T | 1 | 2.5 | 1.5 | 330 | 1 | 6.3 | 151 | 159 | 32 | 315 | 12 | 25*19*16 |
| VC-1.5T | 1.5 | 2.5 | 2.25 | 348 | 1 | 7.1 | 151 | 178 | 36 | 340 | 16.2 | 33*24*16 |
| VC-2T | 2 | 3 | 3 | 365 | 1 | 8 | 183 | 205 | 36 | 380 | 20 | 33*24*19 |
| VC-3T | 3 | 3 | 4.5 | 360 | 2 | 7.1 | 151 | 208 | 46 | 475 | 24 | 34.5*24*16 |
| VC-5T | 5 | 3 | 7.5 | 410 | 2 | 9 | 183 | 264 | 46 | 600 | 41 | 40*30*19 |
| VC-10T | 10 | 3 | 15 | 410 | 4 | 9 | 188 | 398 | 57 | 720 | 79 | 48*42*18.5 |
| VC-15T | 15 | 3 | 22.5 | 435 | 6 | 9 | 190 | 580 | 75 | 870 | 120 | 69*56*20 |
| VC-20T | 20 | 3 | 30 | 435*2 | 8 | 9 | 192 | 630 | 82 | 890 | 193 | 78*68*20 |
| VC-30T | 30 | 3 | 45 | 435*2 | 12 | 9 | 330 | 670 | 106 | 1000 | 220 | 85*67*30 |
| VC-50T | 50 | 3 | 75 | 435*2 | 22 | 9 | 410 | 900 | 130 | 1950 | 1092 | 110*100*130 |
