Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100
Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

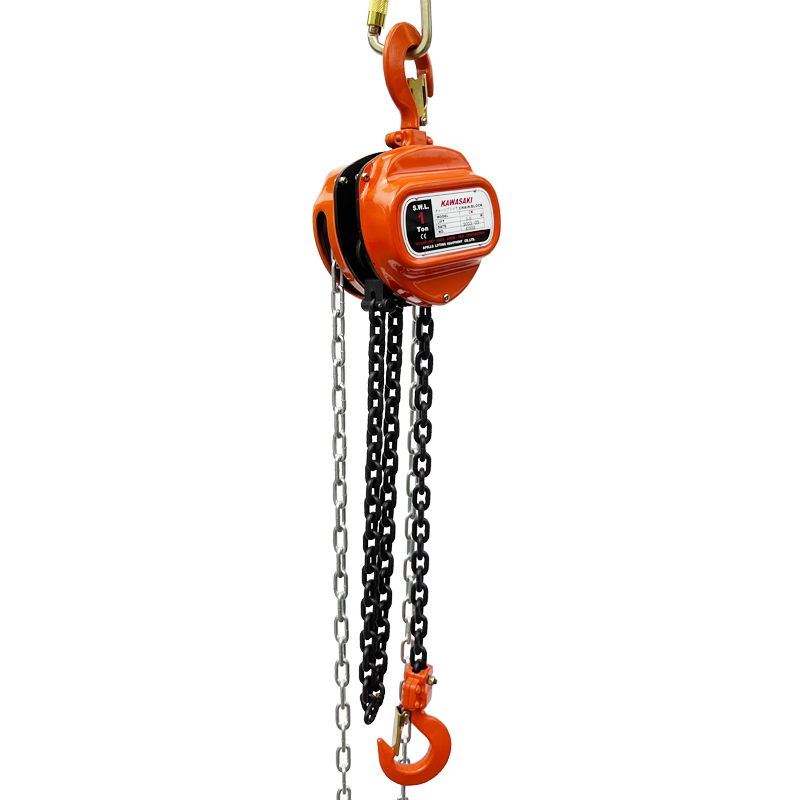

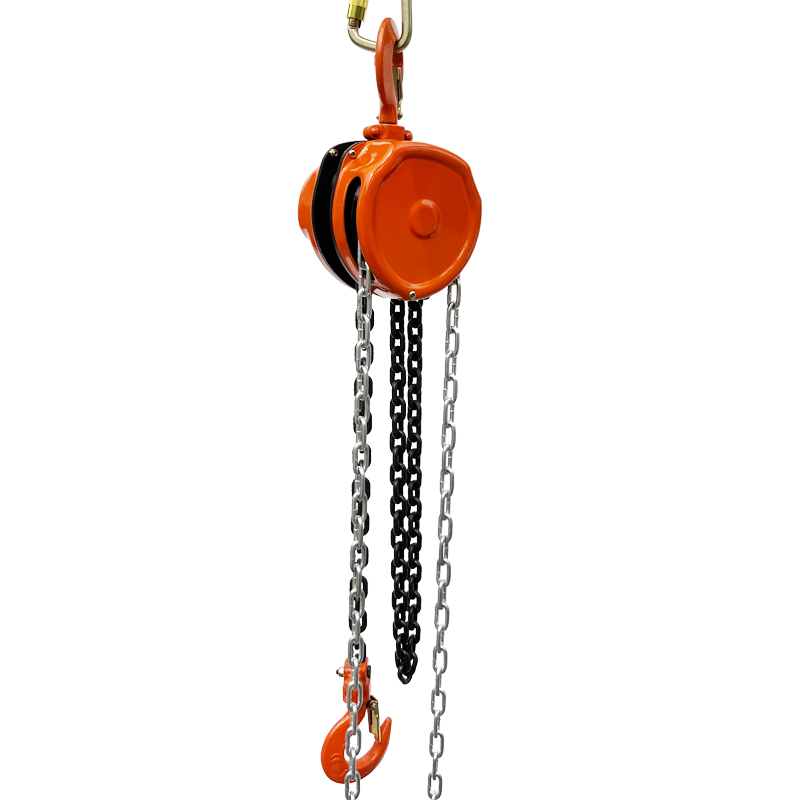

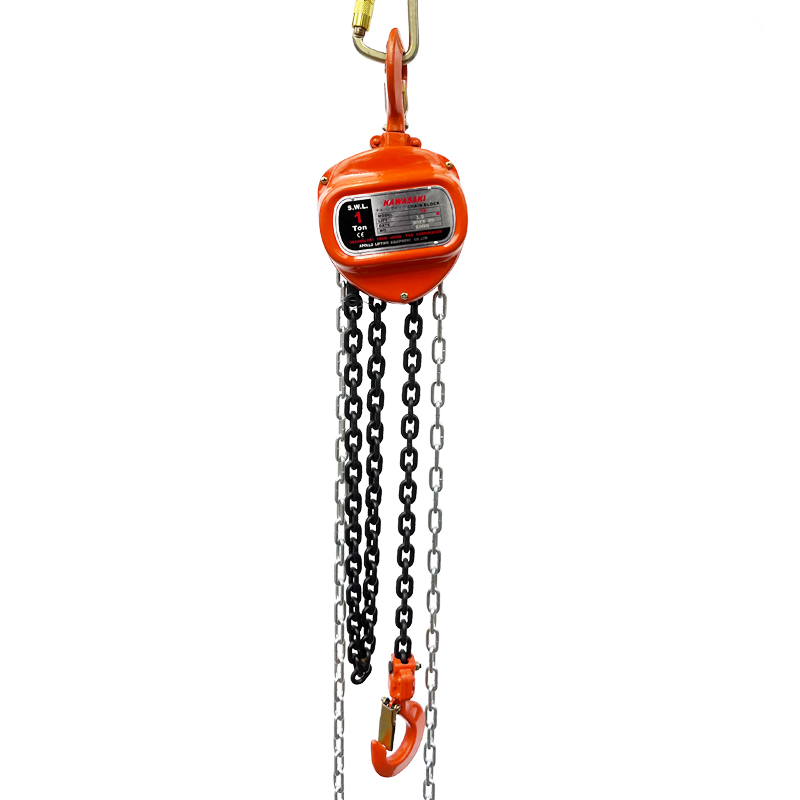

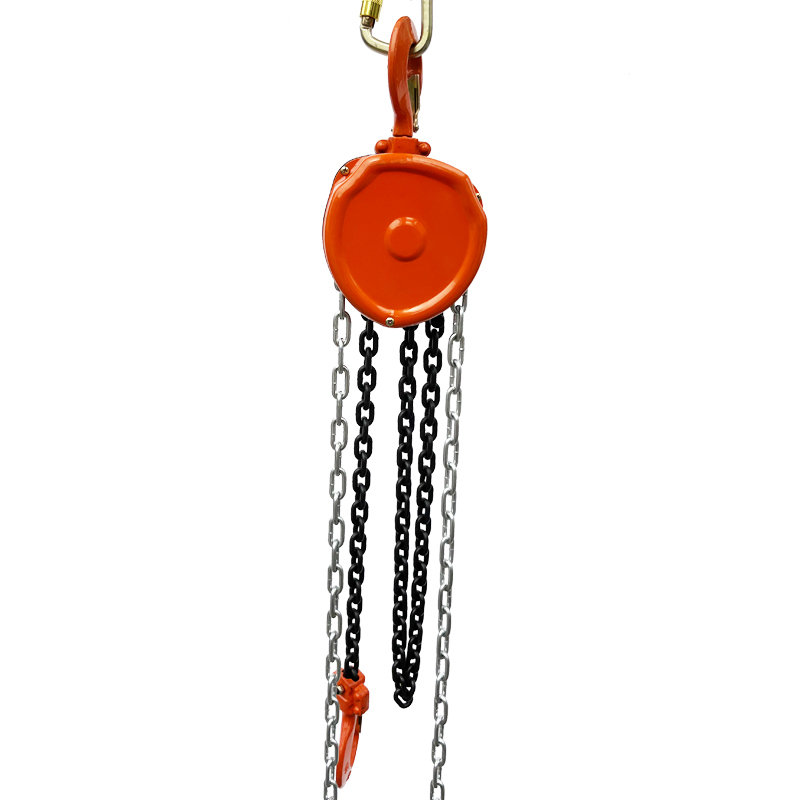

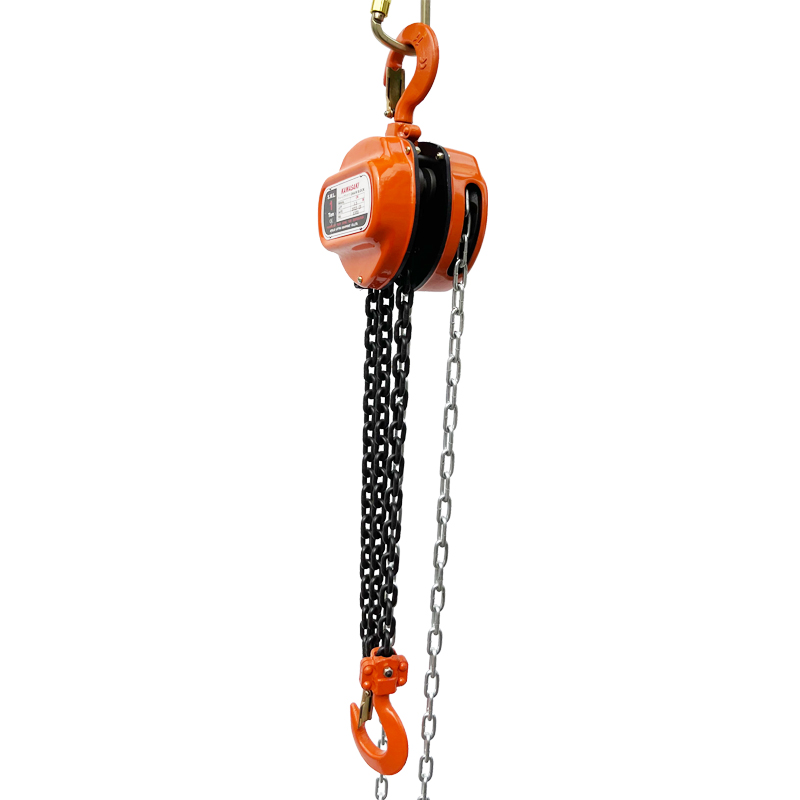

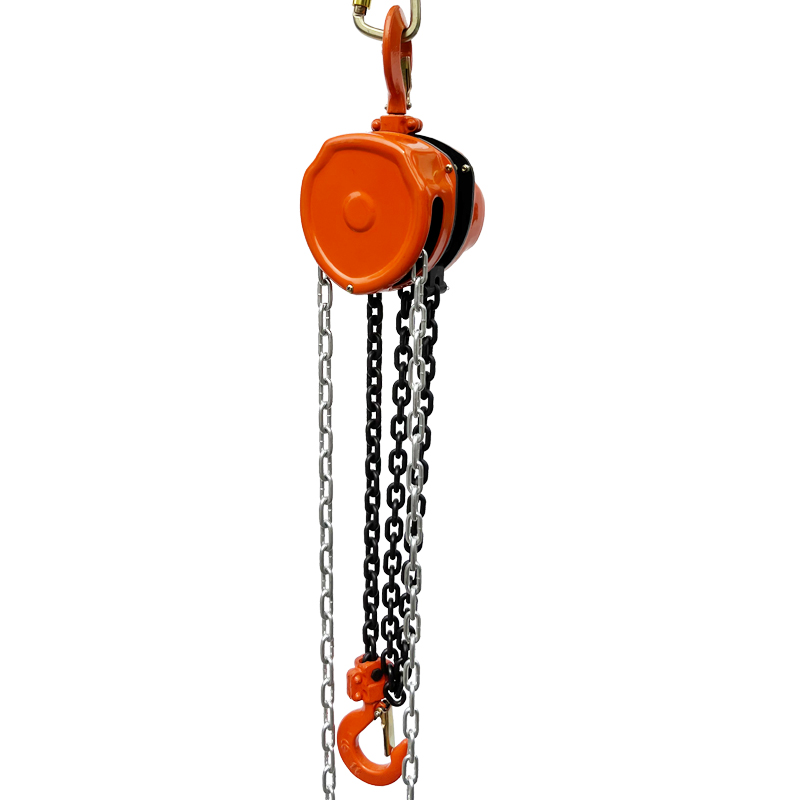

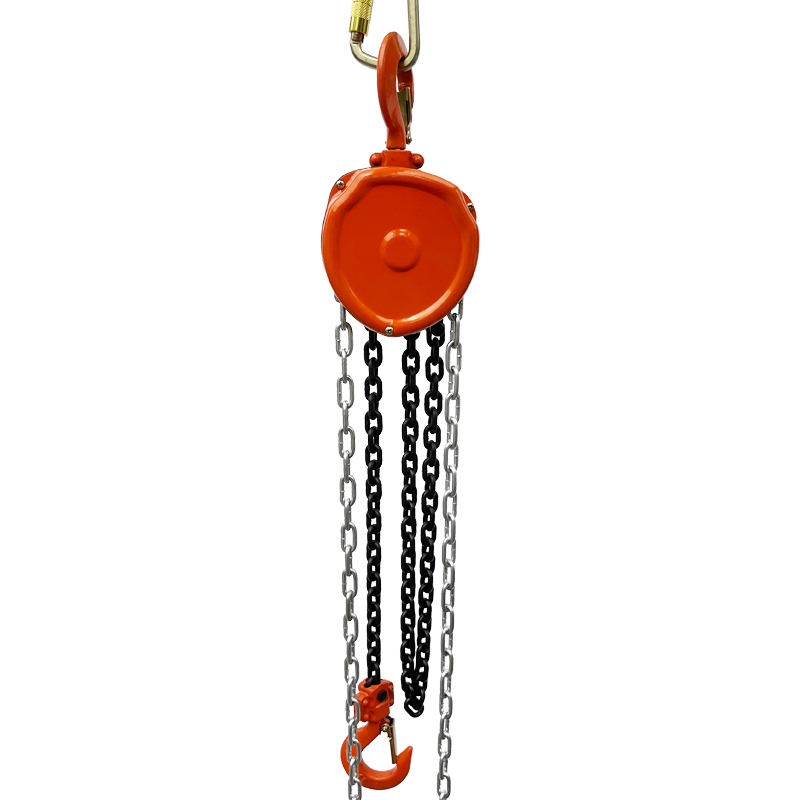

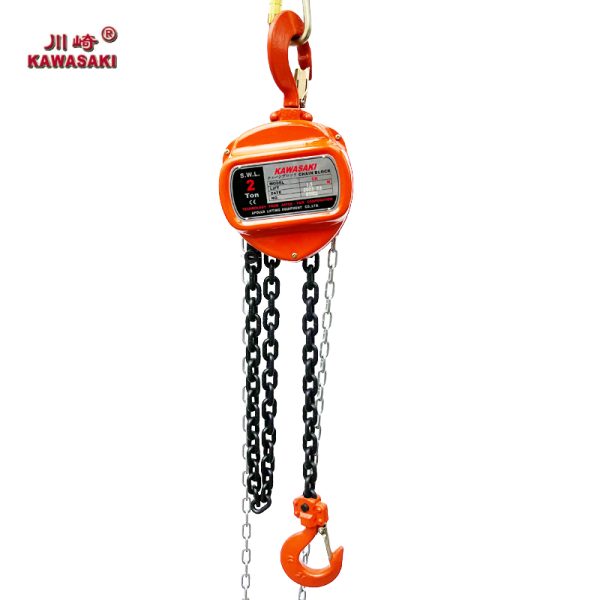

The CK Series Chain Hoist is a portable lifting device operated by hand chain. It is suitable for use in factories, mines, farms,construction sites, wharves,docks and warehouses for installation of equipment, as well as for loading and unloading goods. It is specially advantageous for lifting work in the open air and places where no power supply is available. The chain hoist can be attached to a trolly of any type as a traveling chain houst. It is suitable to monorail overhead conveying system,hand travelling crane and jib crane.
• Safe,reliable in operation with minimum maintenance
• High efficiency and small handpull
• Light weight and easy handling
•Safety factor:4 to 1
• Fatigue tested at 1.5 times of working load limit to 2000 cycles
•Safety factor:4 to 1
• Standard: EN 13157
| Mode | CK-0.5 | CK-1 | CK-1.5 | CK-2 | CK-3 | CK-5 | CK-10 | CK-20 | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 5 | 5 | 16 | 20 | |
| Standard lift(m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Running test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 6.25 | 12.5 | 25 | |
| Headroom(drawn close up)Hmin(mm |
258 | 274 | 347 | 444 | 486 | 616 | 700 | 1000 | |
| Effort required to lift max.load(N) |
221 | 304 | 343 | 294 | 343 | 382 | 392 | 392 | |
| No.of coluns of load chain |
1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | |
| Load chain dia.(mm | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | |
| Dimensions( mm) |
A | 125 | 147 | 183 | 215 | 183 | 215 | 360.5 | 585 |
| B | 111 | 126 | 141 | 163 | 141 | 163 | 163 | 191 | |
| C | 24 | 28 | 34 | 38 | 38 | 48 | 64 | 82 | |
| D | 134 | 154 | 192 | 224 | 192 | 224 | 224 | 224 | |
| Net weight(kg) | 8 | 10 | 16 | 27 | 24 | 36 | 68 | 156 | |
