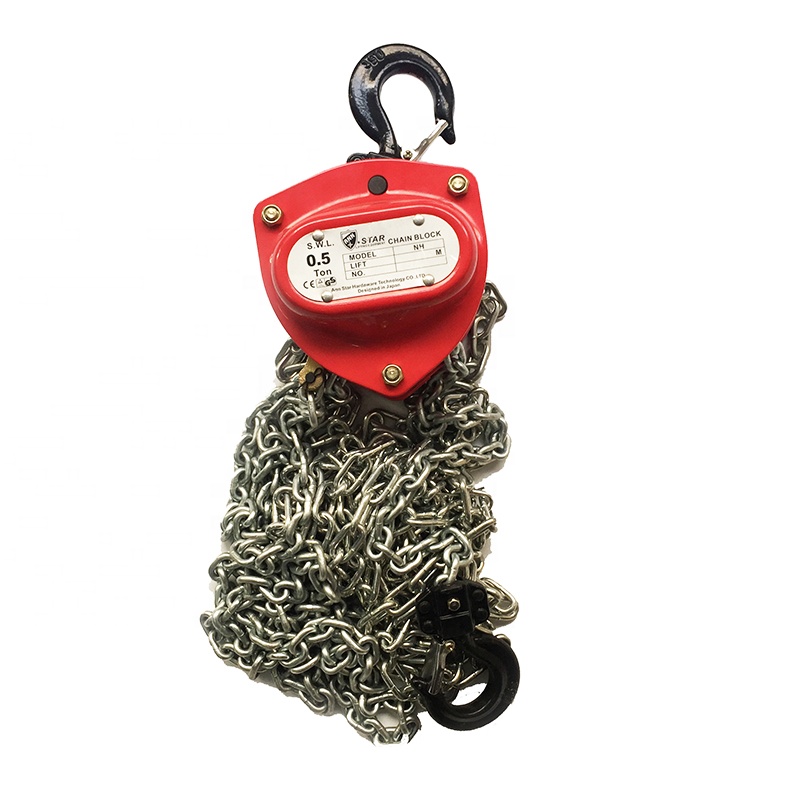

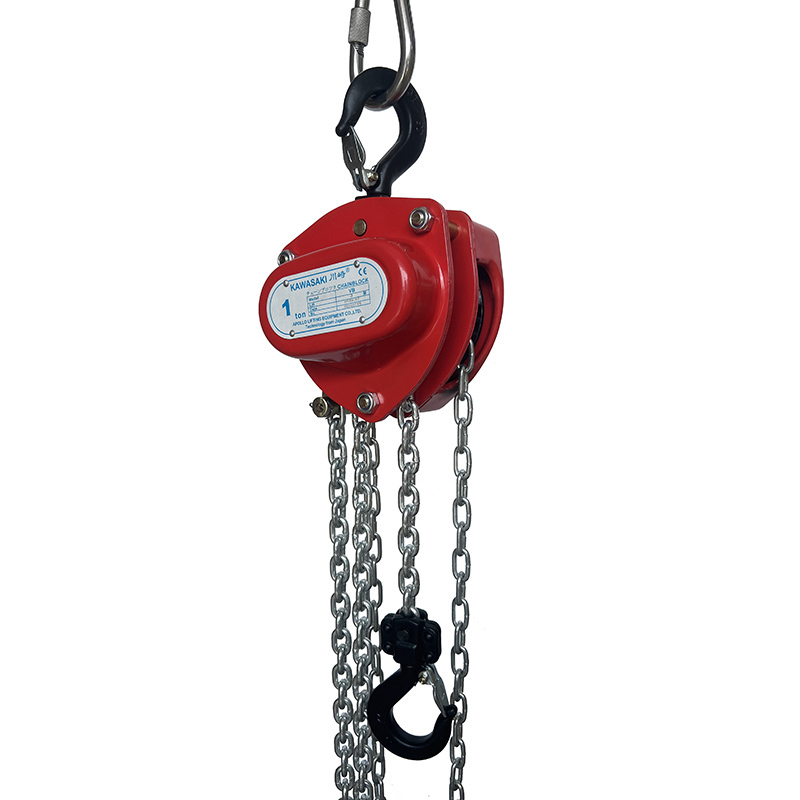

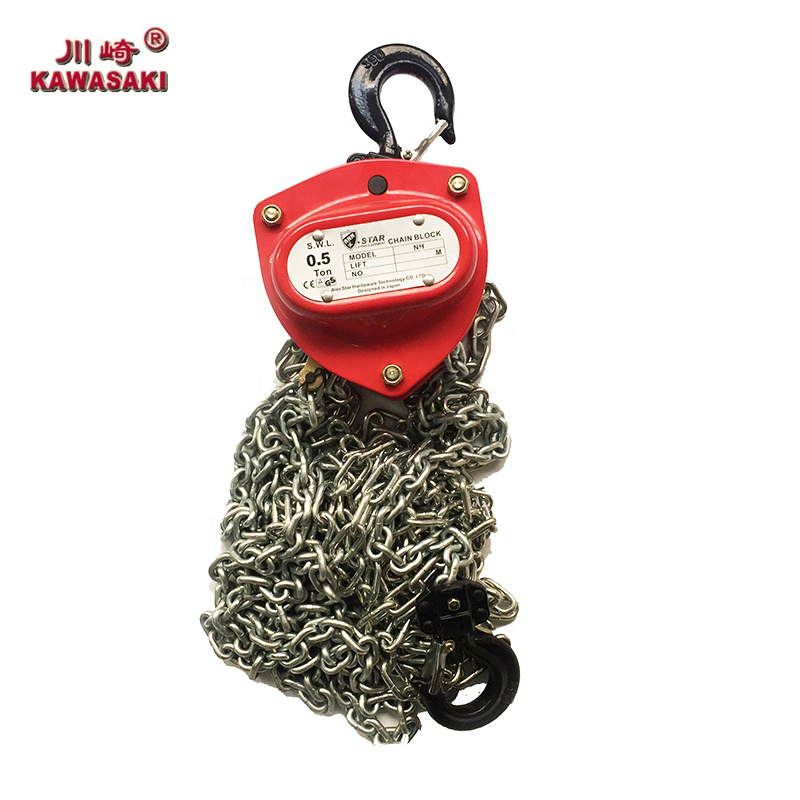

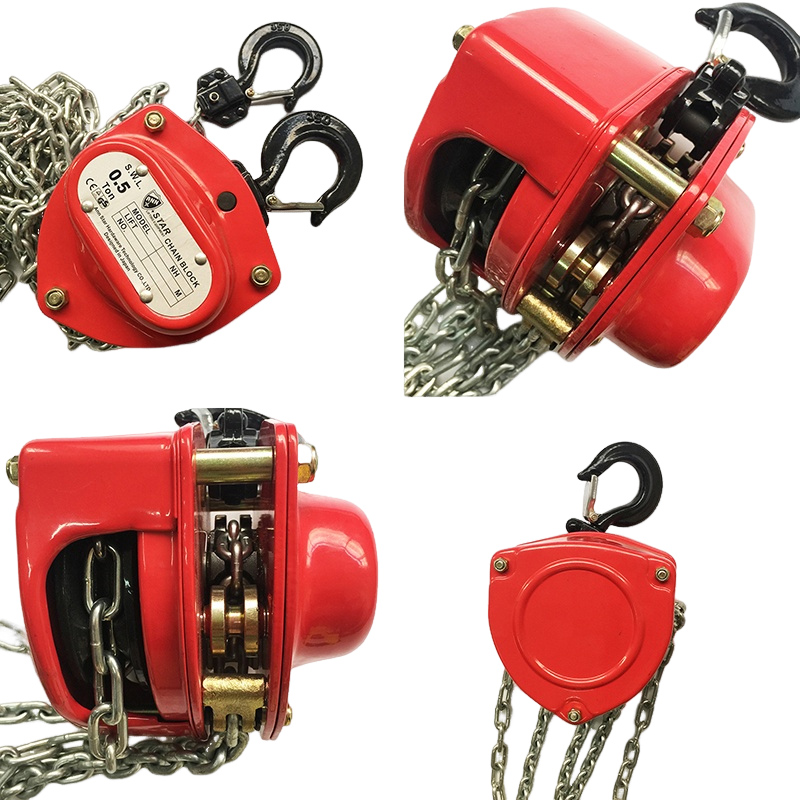

The VB Series Chain Hoist is a portable lifting device operated by hand chain. It is suitable for use in factories, mines, farms,construction sites, wharves,docks and warehouses for installation of equipment, as well as for loading and unloading goods. It is specially advantageous for lifting work in the open air and places where no power supply is available. The chain hoist can be attached to a trolly of any type as a traveling chain houst. It is suitable to monorail overhead conveying system,hand travelling crane and jib crane.
• Safe,reliable in operation with minimum maintenance
• High efficiency and small handpull
• Double-pawl brake system desigend for safety and reliable
•Roll-edge han wheel cover and two hand chain guides ensure smooth operation of the hand chain
•Double enclosure of the brake mechanism to keep out rain water and dust
•Safety factor:4 to 1
• Standard: EN 13157
• Fatigue tested at 1.5 times of working load limit to 2000 cycles
| Model | Capacity (T) |
Standard Lft(m) |
Running test (T |
Efort required tolift max load (N) |
No.of falls of load chan |
Load chain dameter(mm) |
Dimension(mm) | Net weight (kg) |
Packing (L*W*H)(cm) |
|||
| A | B | C | H | |||||||||
| VB-0.5T | 0.5 | 2.5 | 0.75 | 240 | 1 | 5 | 132 | 148 | 28 | 345 | 11 | 24*19*18 |
| VB-1T | 1 | 2.5 | 1.5 | 250 | 1 | 6 | 151 | 172 | 32 | 376 | 12.5 | 28*21*21 |
| VB-1.5T | 1.5 | 2.5 | 2.25 | 265 | 1 | 7.1 | 173 | 196 | 36 | 442 | 17.8 | 34*26*20 |
| VB-2T | 2 | 3 | 3 | 335 | 1 | 8 | 175 | 210 | 36 | 470 | 19.5 | 34*26*20 |
| VB-3T | 3 | 3 | 4.5 | 363 | 1 | 10 | 176 | 230 | 46 | 565 | 29 | 34*26*20 |
| VB-5T | 5 | 3 | 7.5 | 360 | 2 | 9 | 189 | 280 | 46 | 688 | 413 | 41*32*24 |
| VB-10T | 10 | 3 | 15 | 380 | 4 | 9 | 189 | 463 | 57 | 765 | 78.5 | 48*42*18.5 |
