The LT hand pallet truck is the ideal solution for light-duty manual transportation over short distances in stores, warehouses and factories.
handle with comfortable rubber.Ergonomically designed
The heavy steel forks and frame provide the strength and durability.
Intergrated Pump with casting manufacturing process.
he LT is available with either polyurethane or nylon steer and load wheels.Both are non-marking but offer characteristics that may be better suited for certain environments.
Nylon is a harder compund and provides a lower rolling resistance to allow for easier load maneuvering and reduced pull effort. Polyurethane offers more traction, specifically in wet environments. Polyurethane may also be preferred in a noise sensitive areas.
Forks with metal plate and L channel formed steel provide added strength.
30*30*3 rectangular steel tube.

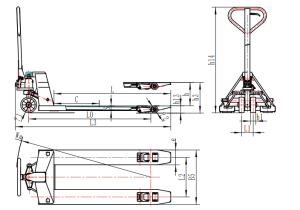

| Identfication | 1.1 | Manufacturer | Machinery | |||
| 1.2 | Model | LT | ||||
| 1.3 | Drive | Manual | ||||
| 1.5 | Load capacity | O kg | 2000/2500 | |||
| 1.6 | Load centre distance | C mm | 475 | 510 | ||
| 1.9 | Wheelbase | LO mm | 1202 | 1252 | ||
| Weights | 2.1 | Net weight | kg | 50-60 | ||
| Wheels/Frame | 3.2 | Steer wheel | mm | ø160*60 | ||
| 3.3 | Load wheel | mm | ø70*60 | |||
| 3.5 | Wheels, number steer/load | 2/4 | ||||
| 3.6 | Tread width,steer | L1 mm | 128 | |||
| 3.7 | Tread width, load | L2 mm | 400 | 535 | ||
| Basic dimensions | 4.4 | Lift | h | mm | 110 | |
| 4.9 | Height of tiller in drive position | h14 | mm | 1072 | ||
| 4.14 | Height raised | h3 | mm | 185 | ||
| 4.15 | Height lowered | h13 | mm | 75 | ||
| 4.19 | Overall length | L3 | mm | 1529 | 1579 | |
| 4.21 | Width across forks | b5 | mm | 550 | 685 | |
| 4.22 | Fork dimensions | s/e/l | mm | 47/150/1150 | 47/150/1200 | |
| 4.35 | Turning radius | Wa | mm | 1322 | 1372 | |
