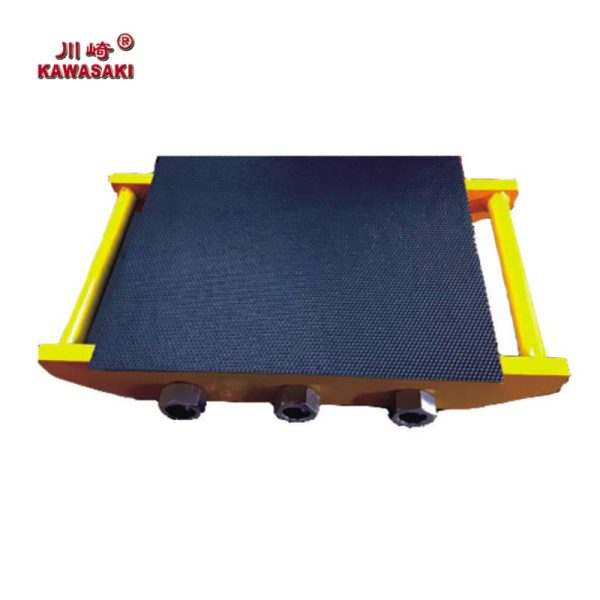

KL series is especially suitable for the need of four points.Contact load, such as the contact surface is the boxA machine with a structure.
Special friction bearing high strength roller is installed in the free guide frame,Can be customized according to user needs of steel roller.
| MODEL | KL-40 | KL-60 | KL-80 | KL-100 | KL-150 | KL-150 |
| Dimensions（length *width*height）(mm) | 520×330×125 | 590×330×145 | 640×330×125 | 730×330×145 | 590×460×125 | 730×460×145 |
| Normal nuclear load(T) | 40 | 60 | 80 | 100 | 150 | 200 |
| Number of wheels(N) | 6 | 6 | 8 | 8 | 12 | 12 |
| Product weight(kg) | 80 | 105 | 126 | 139 | 170 | 208 |
| Wheel material | ALLOY STEEL | ALLOY STEEL | ALLOY STEEL | ALLOY STEEL | ALLOY STEEL | ALLOY STEEL |
| Wheel size | 100×100 | 120×100 | 100×100 | 120×100 | 100×100 | 120×100 |
