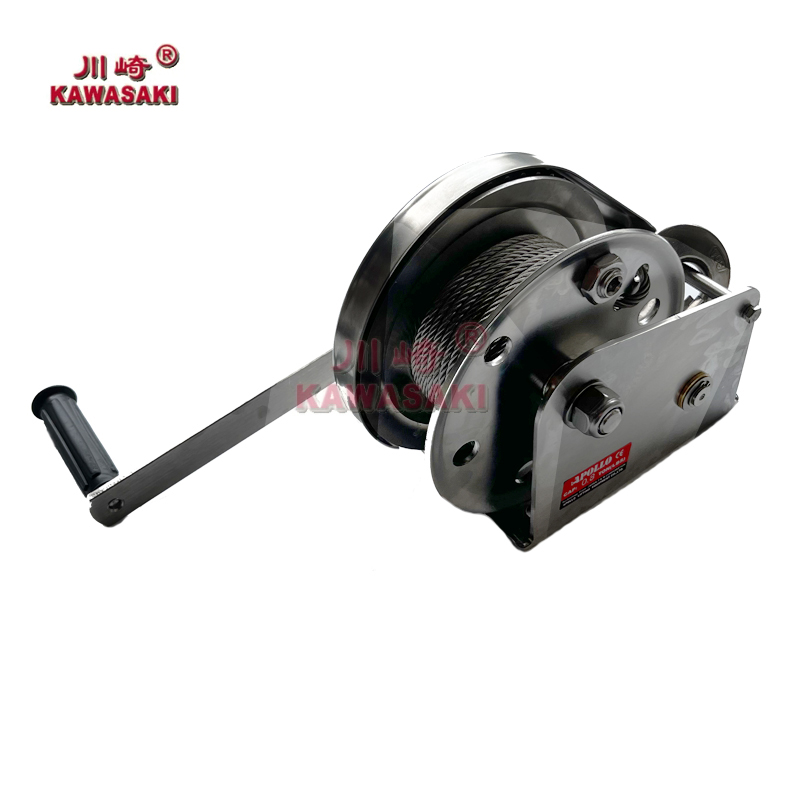

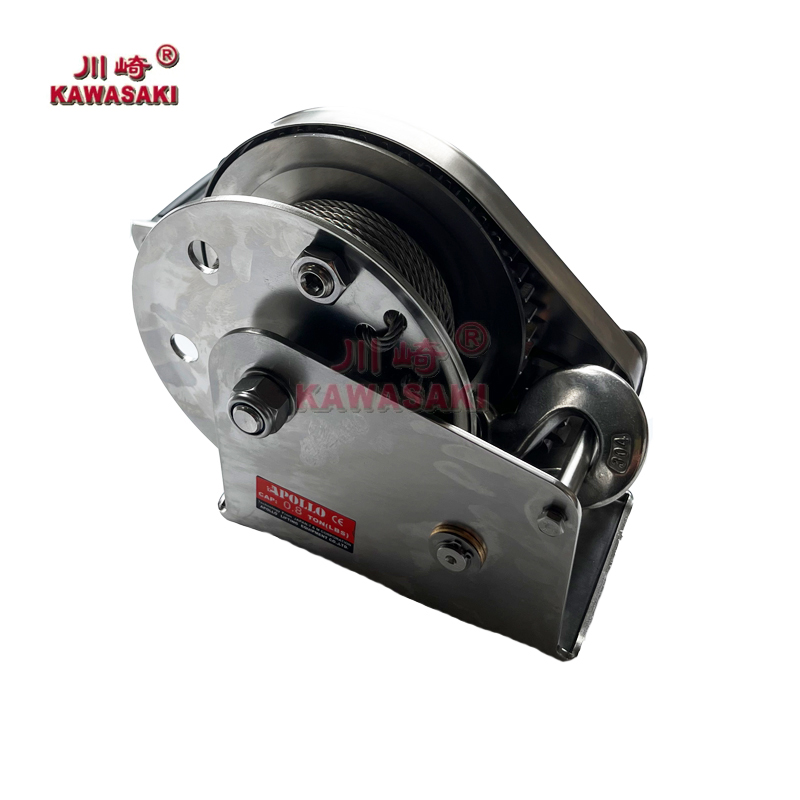

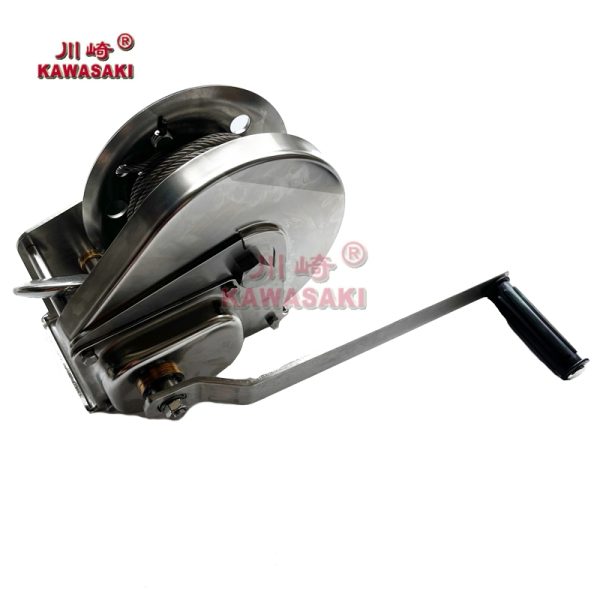

• Adopting lever handle,either may shake operation along the whole circle,or may swing operation at any angle in the any position of circle. It has unique advantage in the narrow space
• The gear box and braking mechanism are designed with sealed structure to avoid foreign matter entering the gear box and braking mechanism, and affect the normal operation
• The braking material is made of environment material and is moresuitable for the special area
• The new brake pawl is designed for more better ensuring the stabilityof braking
• The handle is adopted free structure to adjust the length of handle freely
• The ratchet is big enough to contain more wire rope and more suitable for the operation in deep well and drawing of long distance
| Model | 1200 lb | 1800 lb | 2600 lb | |
| Rated capacity(t) | 1200 | 1800 | 2600 | |
| Test load (kN) | 8 | 12 | 17.5 | |
| Transmission ratio | 4.2:1 | 5:1 | 10:1 | |
| Hand operated strength(N) | 180 | 190 | 190 | |
| Dimensions(mm) | A | Φ48 | Φ60 | Φ75 |
| B | Φ134 | Φ180 | Φ180 | |
| C | 51 | 60 | 63 | |
| D | 157 | 190 | 209 | |
| E | Φ27 | Φ27 | Φ27 | |
| F | 273 | 288 | 307 | |
| G | 110 | 110 | 110 | |
| H | 156 | 203 | 216 | |
| J | 184 | 246 | 294 | |
| R | 208 | 319 | 319 | |
| Net weight(no wire rope)(kg) | 3.7 | 8.1 | 10.3 | |
