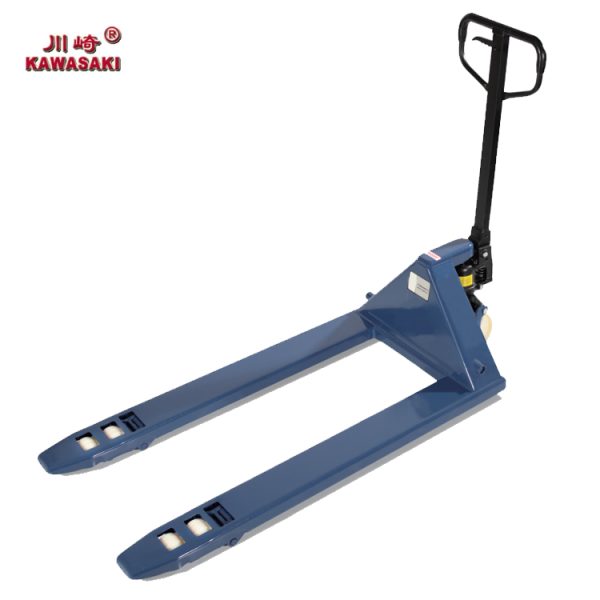

KAWASAKI ENHANCED HAND PALLET TRUCK LNA 3,000/3,500 KG

The LNA hand pallet truck is the ideal solution for heavy-duty manual transportation over short distances.The reinforced frame and pump ensure the stability and safety in all working conditions.

Handle Options Available with
- Steel handle.
- Ergonomically designed handle with comfortable rubber.
Frame The heavy steel forks and frame provide the strength and durability.
- LNA with 4mm steel plate.
- The net weight is up to 85kg.
Pump Heami self designed and maded pump with valve testedto over one million cycles.
- Lift piston is ø35mm: 14% thicker than common pump and 37% less-effort during operation.
Wheel Options The LNA is available with either polyurethane or nylon steer and load wheels. Both are non-marking but offer characteristics that may be better suited for certain environments. Nylon is a harder compund and provides a lower rolling resistance to allow for easier load maneuvering and reduced pull effort. Polyurethane offers more traction, specifically in wet enviroments. Polyurethane may also be preferred in a noise sensitive areas.
Forks Reinforcement Forks with rectangular steel tube provide added strength.
Adjustable Push Rods 26*26 adjustable square steel bar.

Identfication	1.1	Manufacturer			Machinery
	1.2	Model			LNA
	1.3	Drive			Manual
	1.5	Load capacity	Q kg		3000/3500
	1.6	Load centre distance	C mm		475	510
	1.9	Wheelbase	LO mm		1188	1258
Weights	2.1	Net weight	kg		75-85
Wheels/Frame	3.2	Steer wheel	mm		0180*50
	3.3	Load wheel	mm		080*70
	3.5	Wheels, number steer/load			2/4
	3.6	Tread width, steer	L1 mm		128
	3.7	Tread width, load	L2 mm		370	535
Basic dimensions	4.4	Lift	h	mm	110
	4.9	Height of tiller in drive position	h14	mm	1172
	4.14	Height raised	h3	mm	195
	4.15	Height lowered	h13	mm	85
	4.19	Overall length	L3	mm	1497	1567
	4.21	Width across forks	b5	mm	520	685
	4.22	Fork dimensions	s/e/l	mm	49/150/1150	49/150/1220
	4.35	Turning radius	Wa	mm	1295	1364
