Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50
Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month
Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50
Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month

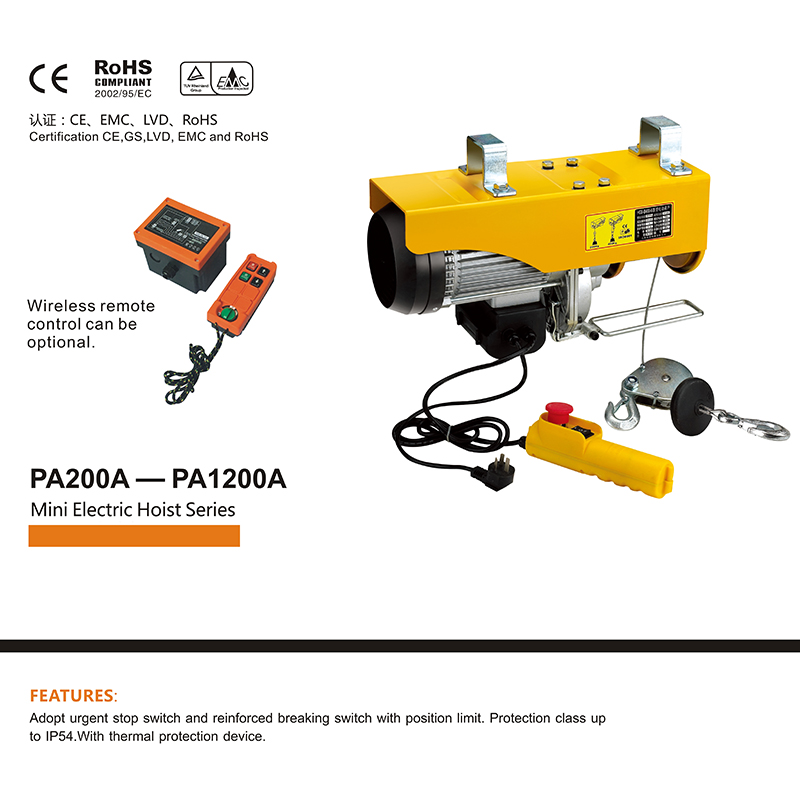

·Adopt urgent stop switch and reinforced breaking switch with position limit, up and down limit device,protection class up to IP54. with thermal protection device.
·Wireless remote control can be optional
·CE EMC LVD RoHS certification
| Model | PA200A | PA250A | PA300A | PA400A | PA500A | PA600A | PA700A | PA800A | PA1000A | PA1200A | ||||||||||
| Method of use | Single- hook |
Doubie -hook |
Single- hook |
Double -hook |
Single- hook |
Double -hook |
Singie- hook |
Double -hook |
Single- hook |
Double -hook |
Singie- hook |
Double -hook |
Singlie- hook |
Double -hook |
Singe- hook |
Double -hook |
Single hook |
Double .hook |
Single- hook |
Doubie hook |
| Rated volt(V) | AC220/230/24050/60E | |||||||||||||||||||
| nput pow er(W) | 480 | 510 | 600 | 950 | 1020 | 1200 | 1250 | 1300 | 1600 | 1800 | ||||||||||
| Rated capacity(kg) | 100 | 200 | 125 | 250 | 150 | 300 | 200 | 400 | 250 | 500 | 300 | 600 | 350 | 700 | 400 | 800 | 500 | 1000 | 600 | 1200 |
| Lfting speed(m/min) | 10 | 5 | 10 | 5 | 10 | 5 | 10 | 5 | 10 | 5 | 10 | 5 | 8 | 4 | 8 | 4 | 8 | 4 | 8 | 4 |
| Lfting height(m) | 12 | 6 | 12 | 6 | 12 | 6 | 12 | 6 | 12 | 6 | 12 | 6 | 12 | 6 | 12 | 6 | 12 | 6 | 12 | 6 |
| Wre rope dia.mm | 3 | 3 | 3 | 3.8 | 4.2 | 4.5 | 5.1 | 5.1 | 5.6 | 6 | ||||||||||
| Cty JCTN(pcs) | 2 | 1 | ||||||||||||||||||
| Packing size(mm) | 470×370×160 | 520×420×170 | 560×250×350 | |||||||||||||||||
| Gw/Nw(kg) | 24/22 | 25/23 | 35/33 | 39/37 | 33/32 | |||||||||||||||
