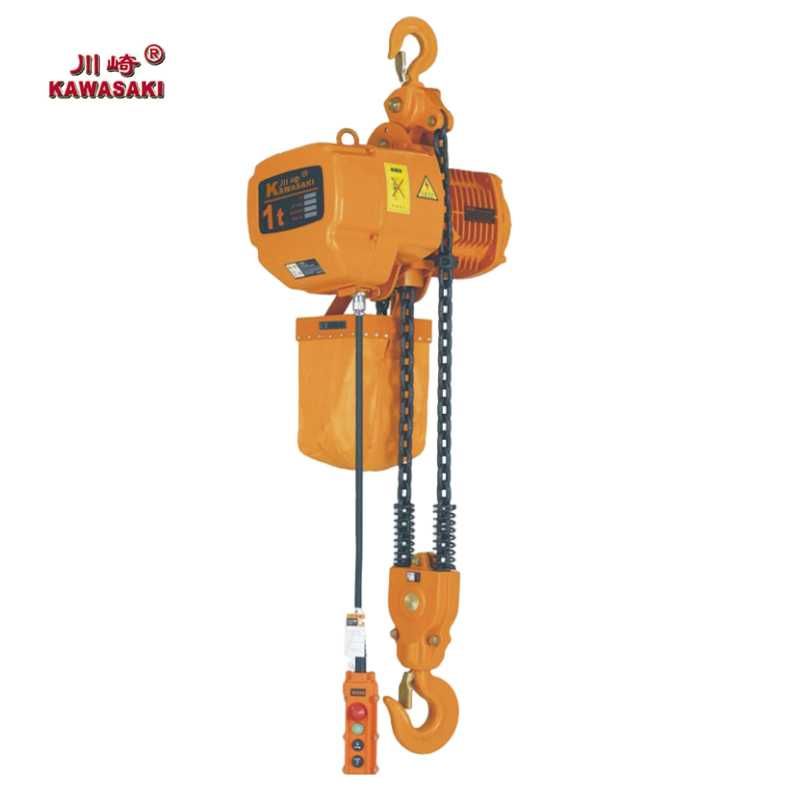

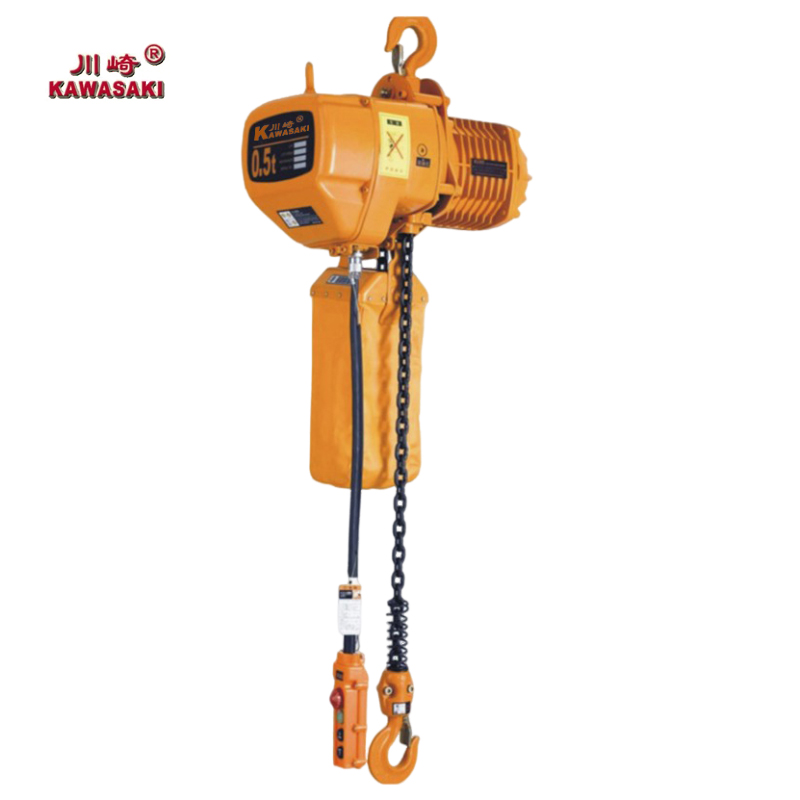

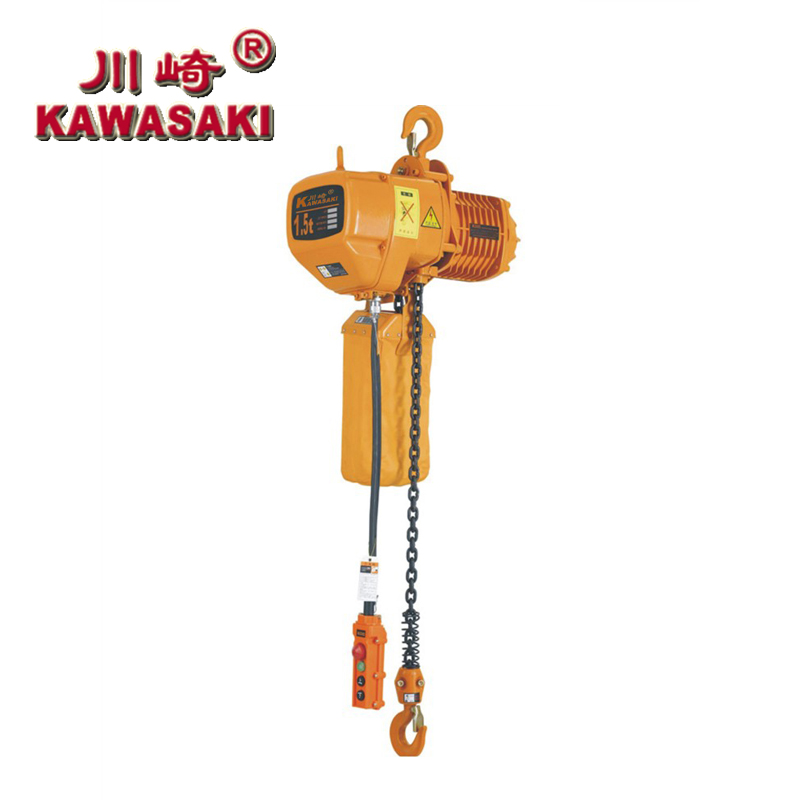

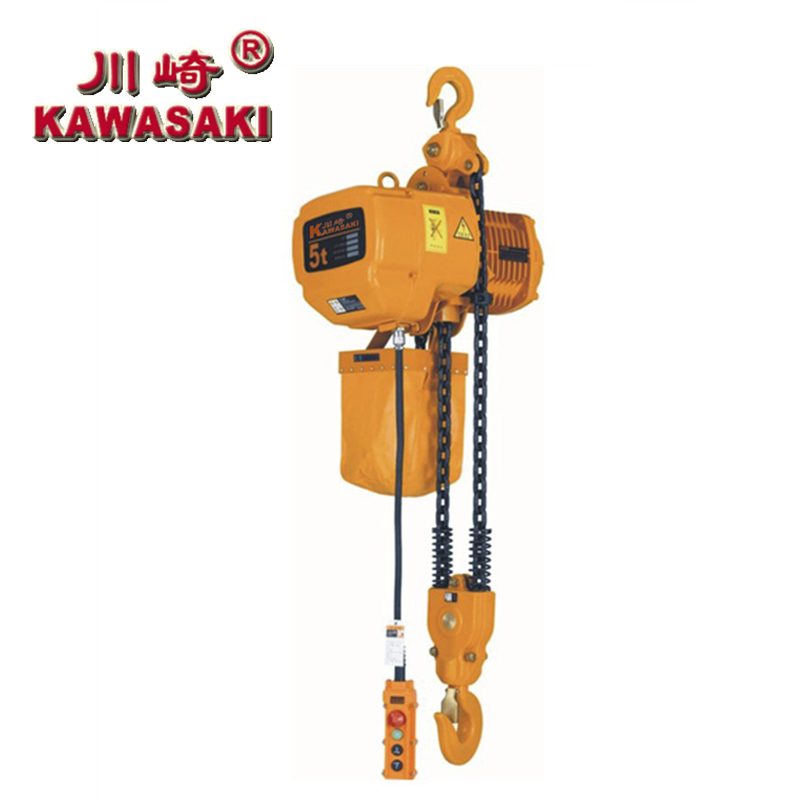

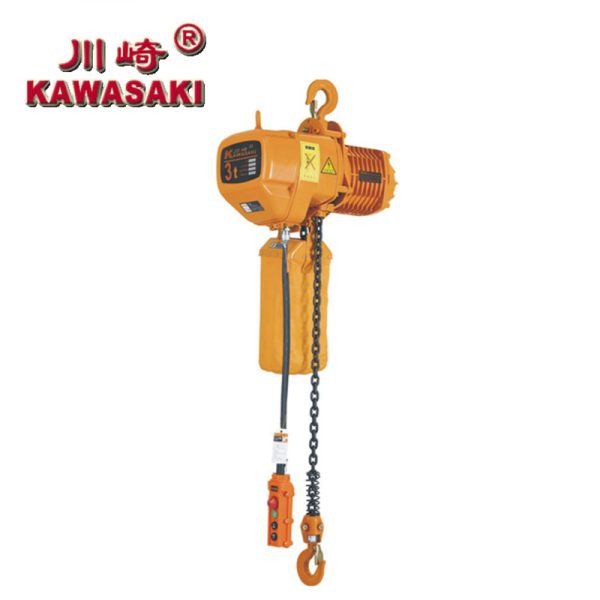

Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50
Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month
Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50
Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month
>>mechanical braker Dual braking system is safe and reliable
>>Limit switch:
The limit switch device is installed where the weight is lifted on and off to make the motor to
stop automatically so as to prohibit the chains from exceeding for safety”
>>Support frame：
The loading support frame consists of two steel plates,which is extremely sturdy”
>>Shell: It is made of light aluminum alloy shell, light but hard. The cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like
chemical plant and electroplate factor”
>>Push button:
Waterproof push button is applied. It is light and durable”
>>Hook:
lt is hot forging with perfect strength that is hard to break. The operation safety of the
lower hook is ensured by its 360 degreesotation and safety tongue piece”
>>Chain:
The chain shall adopt the imported FEC80 ulira heat-treatable aluminum alloy chain. It can be
safely used in poor environments such as rein sea water and chemicals.”
| Model | Capacity(t) | Lifting Speed(m/min) | Lifting motor | |||
| Power(kw) | Rotation speed(c/min) | Phases | Voltage(v) | |||
| KKBB0.5-01 | 0.3 | 7.8 | 1.1 | 1440 | 3 | 220-440 |
| KKBB0.5-01 | 0.5 | 7.8 | 1.1 | 1440 | 3 | 220-440 |
| KKBB01-01 | 1 | 6.8 | 1.5 | 1440 | 3 | 220-440 |
| KKBB01-02 | 1 | 3.9 | 1.1 | 1440 | 3 | 220-440 |
| KKBB1.5-01 | 1.5 | 8.8 | 3.0 | 1440 | 3 | 220-440 |
| KKBB02-01 | 2 | 6.6 | 3.0 | 1440 | 3 | 220-440 |
| KKBB02-02 | 2 | 3.4 | 1.5 | 1440 | 3 | 220-440 |
| KKBB2.5-01 | 2.5 | 5.6 | 3.0 | 1440 | 3 | 220-440 |
| KKBB03-01 | 30 | 5.6 | 3.0 | 1440 | 3 | 220-440 |
| KKBB03-02 | 3 | 4.4 | 3.0 | 1440 | 3 | 220-440 |
| KKBB05-02 | 5 | 2.8 | 3.0 | 1440 | 3 | 220-440 |
| Model | Capacity(t) | Dimensions(mm) | |||||||||||
| H | A | B | D | E | F | J | K | L | M | N | Chain | ||
| KKBB0.5-01 | 0.3 | 580 | 455 | 230 | 240 | 155 | 31 | 29 | 31 | 29 | 20 | 20 | Φ6.3 |
| KKBB0.5-01 | 0.5 | 580 | 455 | 230 | 240 | 155 | 31 | 29 | 31 | 29 | 20 | 20 | Φ6.3 |
| KKBB01-01 | 1 | 650 | 520 | 260 | 300 | 176 | 42 | 32 | 42 | 32 | 24 | 24 | Φ7.1 |
| KKBB01-02 | 1 | 680 | 455 | 230 | 240 | 155 | 42 | 32 | 42 | 32 | 24 | 24 | Φ6.3 |
| KKBB1.5-01 | 1.5 | 800 | 615 | 295 | 430 | 265 | 49 | 40 | 49 | 40 | 30 | 30 | Φ10.0 |
| KKBB02-01 | 2 | 800 | 615 | 295 | 430 | 265 | 49 | 40 | 49 | 40 | 30 | 30 | Φ10.0 |
| KKBB02-02 | 2 | 835 | 520 | 260 | 300 | 236 | 49 | 40 | 49 | 40 | 30 | 30 | Φ7.1 |
| KKBB2.5-01 | 2.5 | 845 | 615 | 295 | 430 | 265 | 59 | 48 | 59 | 48 | 35 | 35 | Φ11.2 |
| KKBB03-01 | 3 | 845 | 615 | 295 | 430 | 265 | 59 | 48 | 59 | 48 | 35 | 35 | Φ11.2 |
| KKBB03-02 | 3 | 950 | 615 | 295 | 430 | 320 | 59 | 48 | 59 | 48 | 35 | 35 | Φ10.0 |
| KKBB05-02 | 5 | 1030 | 615 | 295 | 430 | 325 | 60 | 48 | 60 | 48 | 43 | 43 | Φ11.2 |
