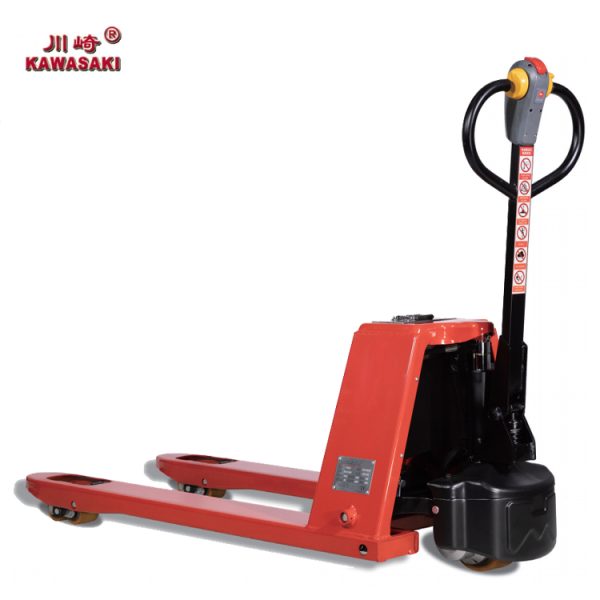

KAWASAKI ECONOMICAL ELECTRIC WALKIE PALLET TRUCK HD 2,000/3,000 KG

HD series is an economical solution for light logistics operation, powered by a powerful lithium battery that can be removed by means of a rapid vertical extraction system, the 1.2 kW drive motor is ideal for transporting pallets and goods weighing up to 3,000 kg over short distances.
The height lowered is 65mm.
Handle with Ease
• FOC forward/reverse thumbwheel.
• Auto reverse.
• Turtle mode switch.
• Lifting/Lowering button.
• LCD Screen
• Battery/Charging Incicator
• Error code display
• Horn
Lithium Battery (BMS)
• The plug-in&out system enables an easy battery replacement in just few seconds.
• The machine can also be equipped with a second extra battery, allowing continuous and non-stop work.
• The battery management system (BMS) monitor battery state and ensure safety of operation.
Drive Motor
• Up to 1200W brushless DC motor.
• Electric brake.
• Cover of driving wheel.
• Cables bending tested to over 8 million cycles.
Frame
• HD 2000kg with 4mm steel plate.
• HD 3000kg with 4.75mm steel plate.
• HD with 4 full length reinforcement rib.
• HD Lowered fork height: 65mm
Wheels
• Polyurethane wheels.
• Wheels with shore hardness A98, proven reliable.
Manual Lowering (Optional)
Balance Wheel (Optional)
• More stable
6S Battery Plug-in & Out
24 Hours Service Everyday
Traveling Speed
• Unladen 4.2km/h
• Laden 4km/h
Easy Maintenance
HD utilizes modular chasis design, error code display, makes disassembly and assembly simple.
• 1 minute
Replace the handle
• 2minutes
Remove the controller
• 1 minute
Replace the drive wheel
• 3 minutes
Remove the motor
Fork Length (mm)

1150/1220/1500

1600/1800/2000

Identification	1.1	Manufacturer(abbreviation)		Machinery
	1.2	Model		HD (HDD)
	1.3	Drive		Electric
	1.5	Load capacity	O kg	2000/3000
	1.6	Load centre distance	C mm	600
	1.9	Wheelbase	y mm	1270	1340
Weights	2.1	Net Weight	kg	155	165
Wheels/Frame	3.2	Tyre size front	mm	ø210*70
	3.3	Tyre size rear	mm	ø8070 (ø6376)
	3.5	Wheels,number front/rear		1/4
	3.6	Tread width,front	mm	n/a
	3.7	Tread width,rear	b11 mm	390	520
Basic dimensions	4.4	Lift	h3 mm	110(100)
	4.9	Height of tiller in drive position	h1 mm	1280
	4.14	Height raesed	mm	195(165)
	4.15	Height lowered	h13 mm	85 (65)
	4.19	Overall length	l1 mm	1640	1710
	4.2	Length to face of forks	l2 mm	480
	4.21	Overall width	b5	550	680
	4.22	Fork dimensions	s/e/l mm	73 (59)/160/1150	73 (59)/160/1220
	4.25	Width across forks	b5	550	680
	4.35	Turning radius	Wa mm	1445	1515
Performance Data	5.1	Travel speed, laden/unladen	km/h	4/4.2
	5.2	Lift speed, laden/unladen	m/s	0.02
	5.3	Lowering speed, laden/unladen	m/s	n/a
	5.8	Max. gradeability, laden/unladen	%	5/18
	5.1	Brake		Eectric
Electrics	6.1	Drive motor, output	kW	0.7/1.5
	6.2	Lift motor output	kW	0.8
	6.3	Battery		Lithium
	6.4	Battery voltage/nominal capacity	V/Ah	48/20(30)
	6.5	Battery weight	kg	10
Misc.	8.1	Type of drive contorl		FOC
