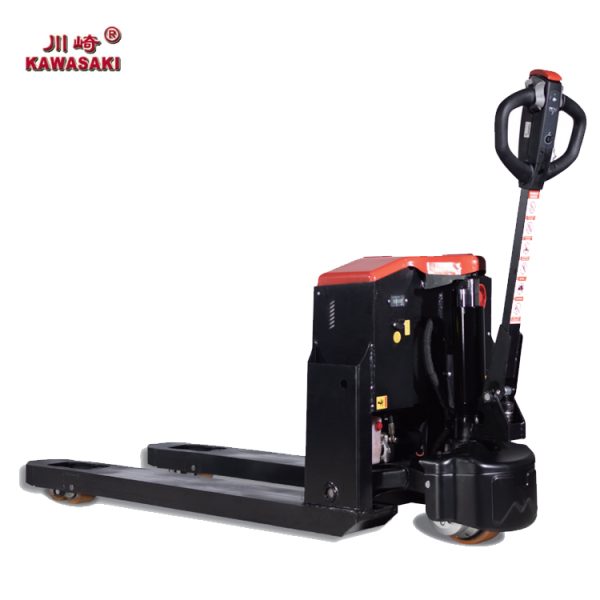

KAWASAKI ECONOMIC ELECTRIC WALKIE PALLET TRUCK HK5 4,000/5,000 KG

HK5 is an ideal solution for heavy-duty logistics operations, the powerful drive motor is ideal for transporting pallets and goods weighing up to 5,000kg over short distances.

Handle with Ease

FOC forward/reverse thumbwheel.
Auto reverse.
Turtle mode switch.
Lifting/Lowering button.
Horn
Key

Lead-Acid Battery

48V/60Ah lead-acid battery
5 hours battery life

Drive Motor

Up to 1500W brushless DC motor.
Electric brake.
Cover of driving wheel.
Cables bending tested to over 8 million cycles.

Frame

HK5 with 18# channel steel.
HK5 with 8 full length reinforcement steel plate.

Wheels

Polyurethane wheels.
Wheels with shore hardness A98, proven reliable.

Balance Wheel (Optional)

More stable

Traveling Speed

Unladen 4.2km/h
Laden 4km/h

Easy Maintenance

HK5 Series utilizes modular chasis design, error code

display, makes disassembly and assembly simple.

• 1 minute Replace the handle
• 2 minutes Remove the controller
• 1 minute Replace the drive wheel
• 3 minutes Remove the motor

Fork Length (mm)

1150/1220/1500

1600/1800/2000

Identification	1.1	Manufacturer(abbreviation)		Machinery
	1.2	Model		HK5
	1.3	Drive		Electric
	1.5	Load capacity	O kg	4000/5000
	1.6	Load centre distance	C mm	600
	1.9	Wheelbase	y mm	1315	1385
Weights	2.1	Net Weight	kg	315	335
Wheels/Frame	3.2	Tyre size front	mm	ø210*70
	3.3	Tyre size rear	mm	ø80*70
	3.5	Wheels,number front/rear		1/4
	3.6	Tread width,front	mm	n/a
	3.7	Tread width,rear	b11 mm	390	520
Basic dimensions	4.4	Lift	h3 mm	110(100)
	4.9	Height of tiller in drive position	h1 mm	1310
	4.14	Height raesed	mm	195
	4.15	Height lowered	h13 mm	85
	4.19	Overall length	l1 mm	1690	1760
	4.2	Length to face of forks	l2 mm	525
	4.21	Overall width	b5	560	700
	4.22	Fork dimensions	s/e/l mm	73/180/1150	73/180/1120
	4.25	Width across forks	b5	560	700
	4.35	Turning radius	Wa mm	1495	1565
Performance Data	5.1	Travel speed, laden/unladen	km/h	4/4.2
	5.2	Lift speed, laden/unladen	m/s	0.02
	5.3	Lowering speed, laden/unladen	m/s	n/a
	5.8	Max. grade ability, laden/unladen	%	3/18
	5.1	Brake		Electric
Electrics	6.1	Drive motor, output	kW	1.5
	6.2	Lift motor output	kW	0.8
	6.3	Battery		Lead-Acid Battery
	6.4	Battery voltage/nominal capacity	V/Ah	48/60
	6.5	Battery weight	kg	62
Misc.	8.1	Type of drive contorl		FOC
