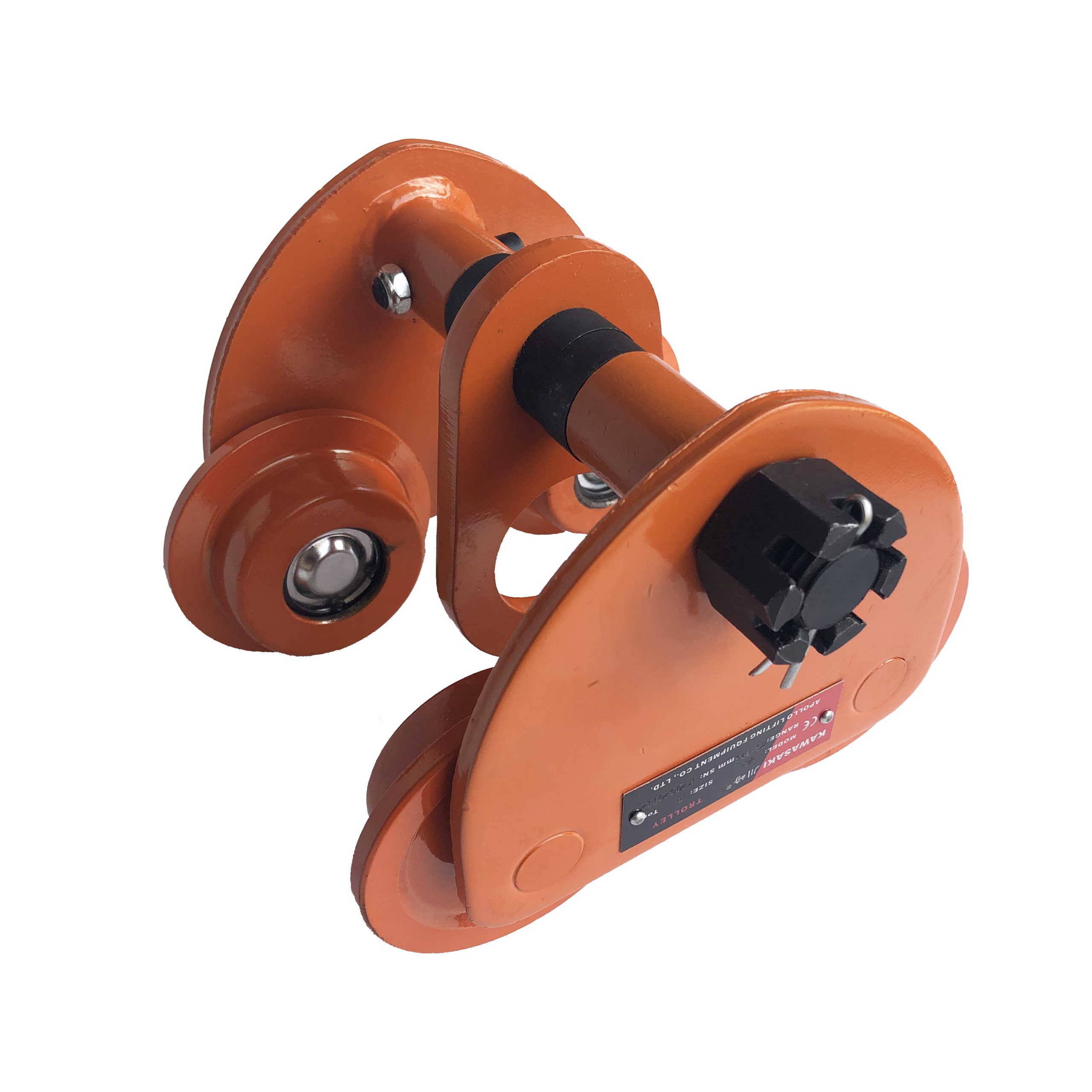

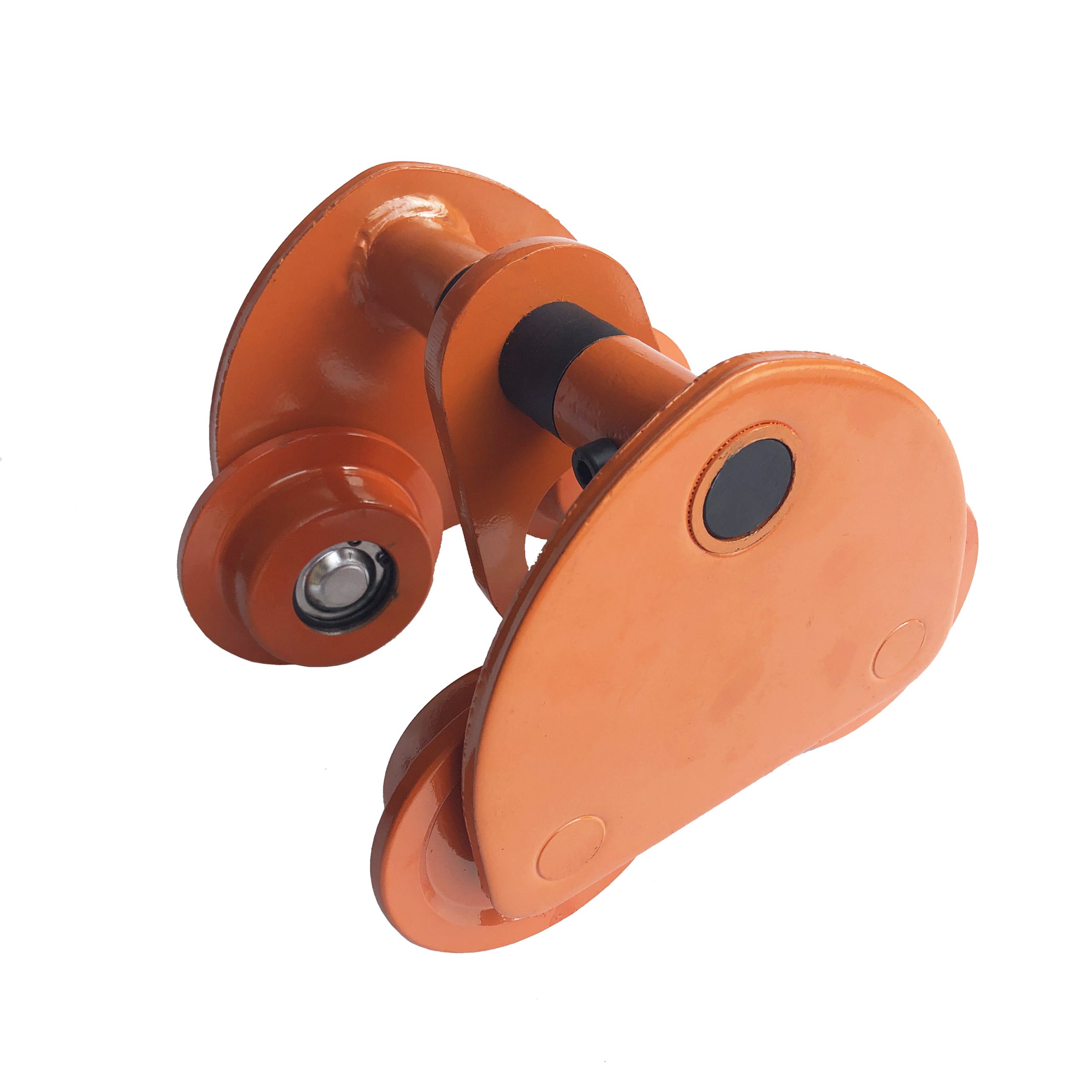

KAWASAKI BEAM TROLLEY VP

Chat Now

Product details

VP is widely used in factories, mines, docks, warehouses, construction sites, etc.
VP is used for installing machinery and equipment, lifting goods, and are particularly suitable for operations in locations without power supply
The trolley is safe to use and easy to maintain.
The single track trolley has a compact structure and small installation size.
The distance adjustment between the wheels of the monorail trolley is convenient and suitable for various I-beams.
The left and right wall panels of the monorail car are hinged together, and under the action of gravity, the height can be adjusted by itself to ensure that the four wheels are evenly stressed.
Trolley has high transmission efficiency and low manual pulling force.
And can drive on curves with smaller turning radii

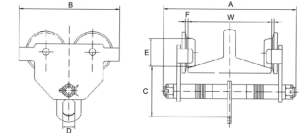

Model	Capacity (ton)	Fits Beam(mm)				Dimensions(mm)						Minimum Revolving Radius(mm)	N.W. (kg)
		W		H		Dimensions(mm)
		min	max	min	max	A	B	C	D	E	F
VP005	0.5	75	125	100	150	206	174	120	45	55	27	900	5.5
VP010	1	75	125	125	250	206	231	120	45	80	27	1300	7.5
VP020	2	100	150	150	400	241	271	155	60	100	33	1500	11.2
VP030	3	100	150	180	400	261	311	185	70	113	47	2000	17
VP050	5	125	175	250	450	294	351	220	80	125	53	2600	30.5
VP100	10	150	175	250	450	294	721	165	00	125	53	0	43
