Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100
Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

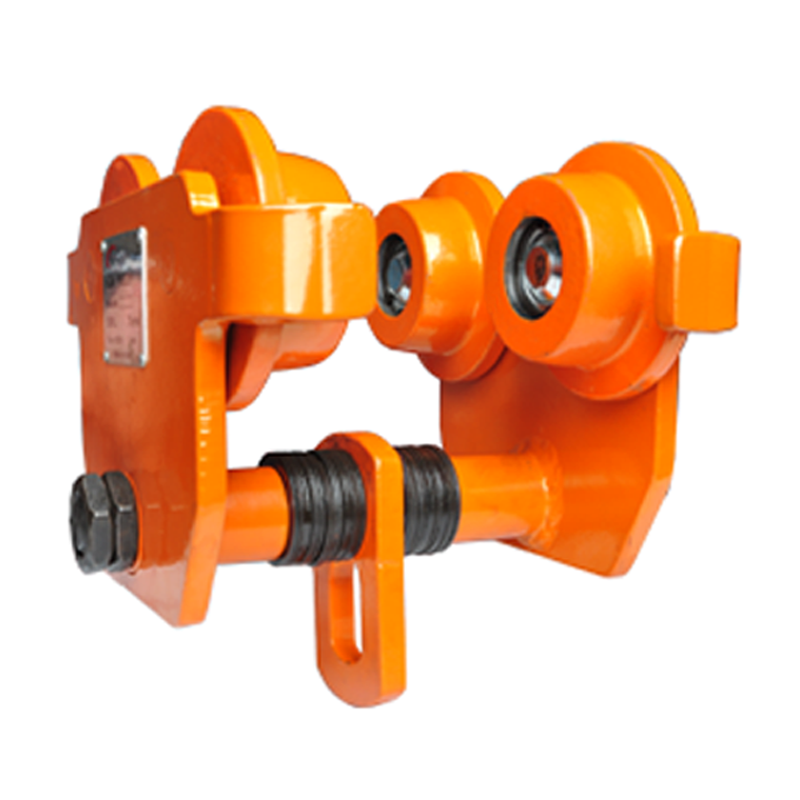

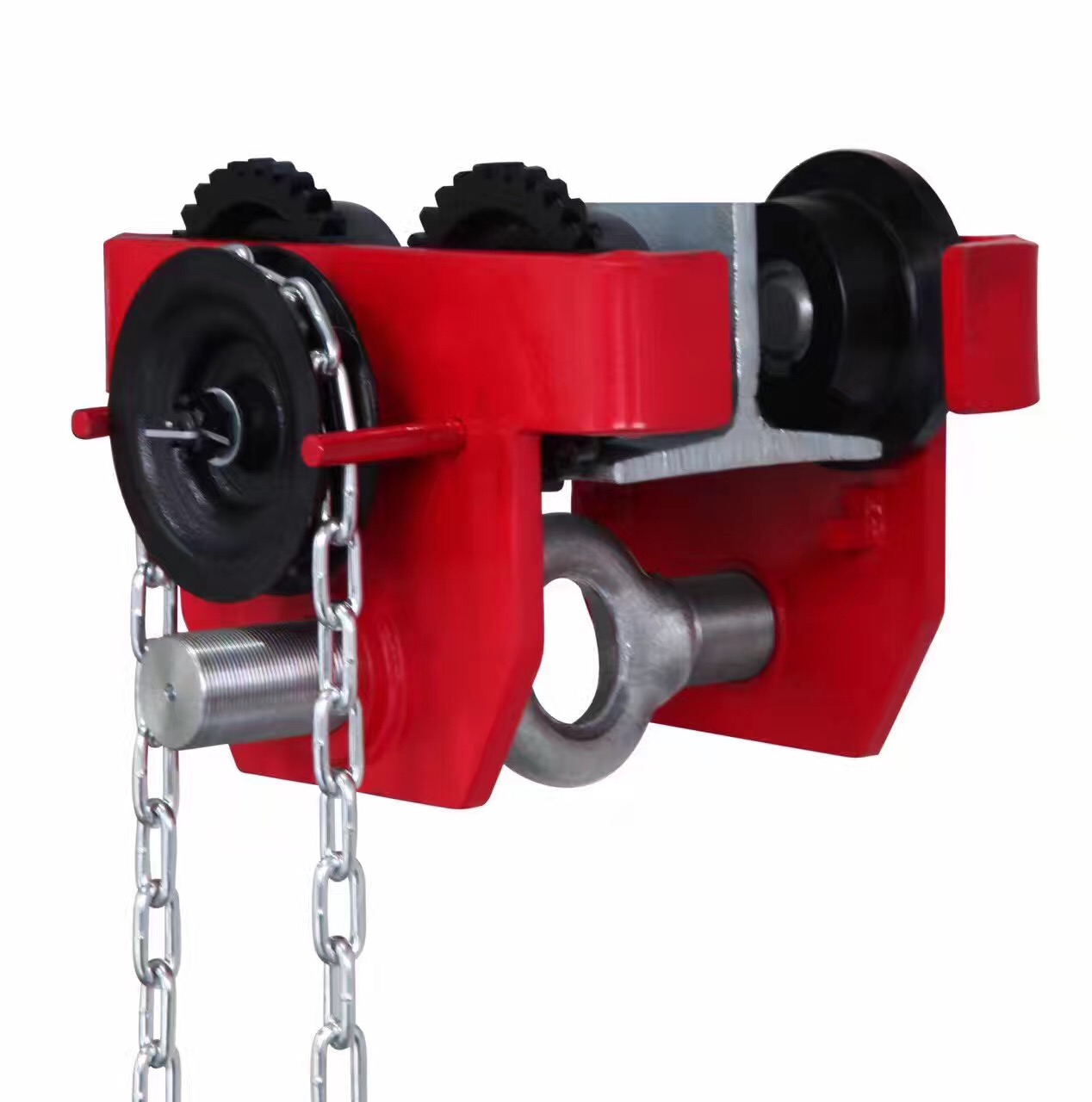

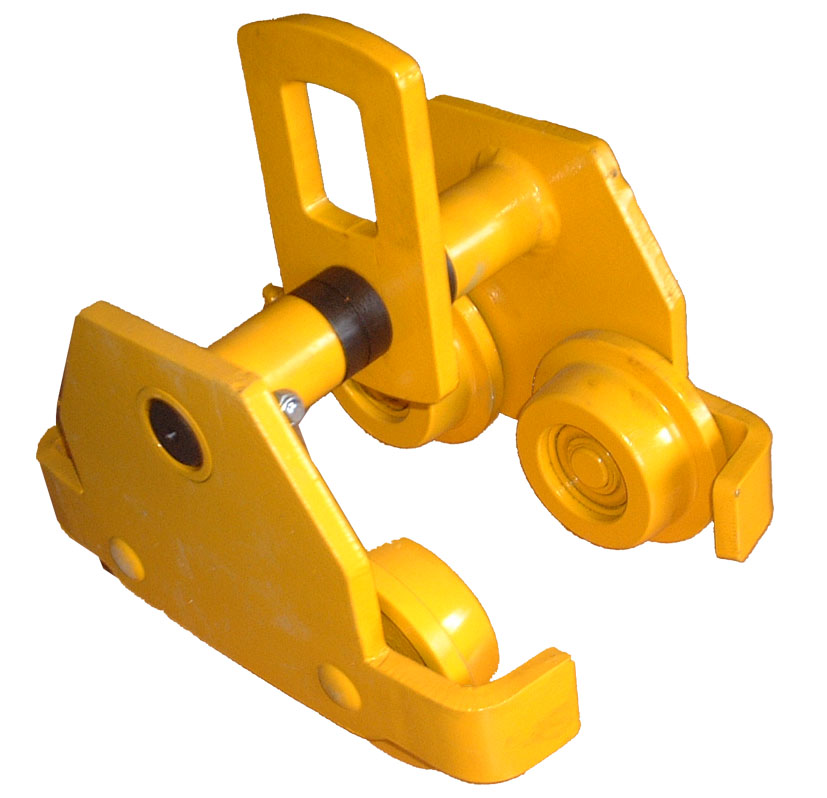

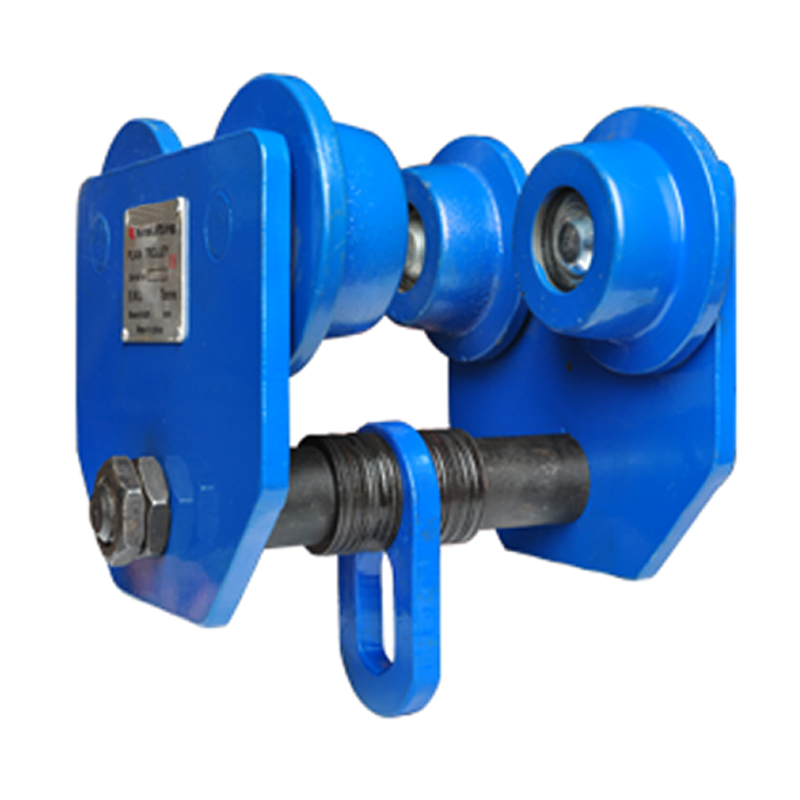

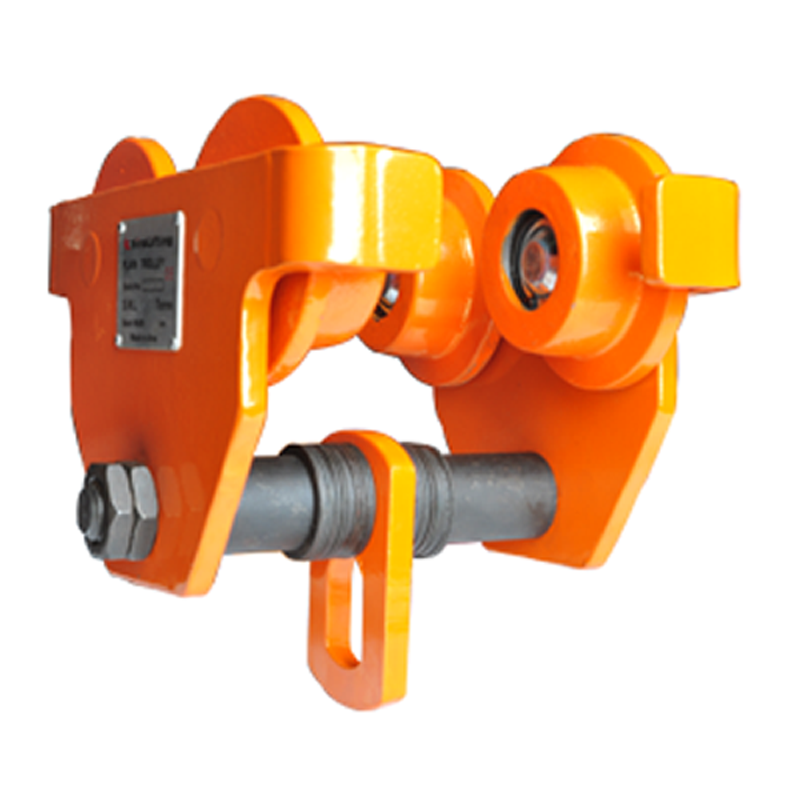

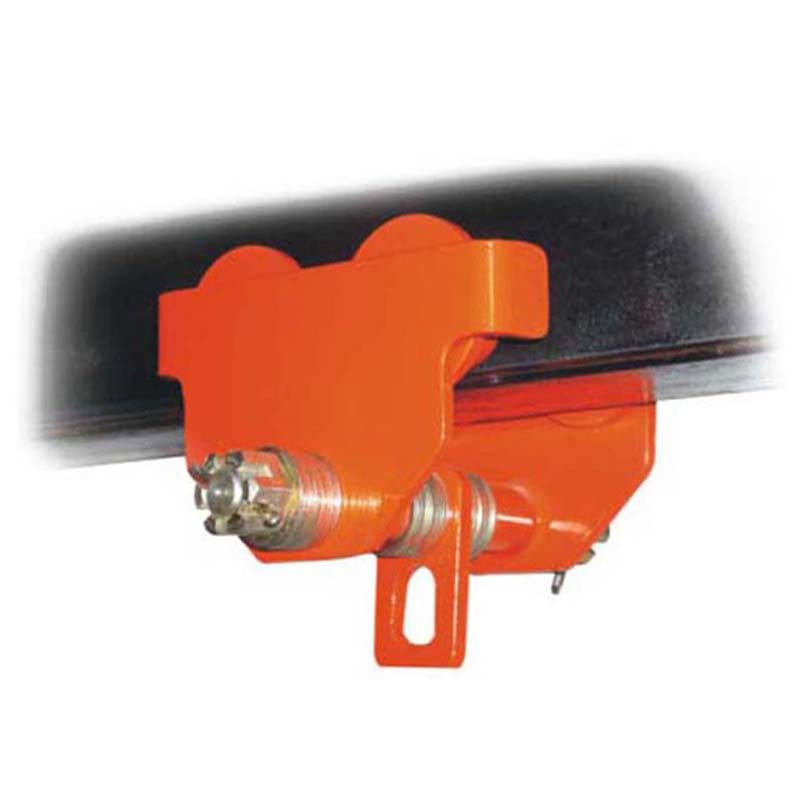

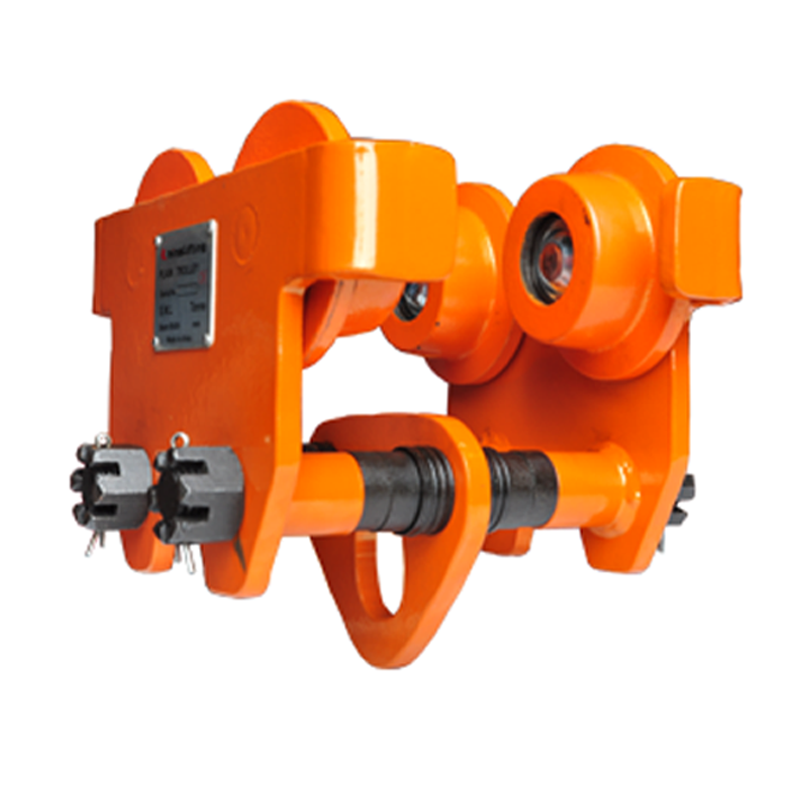

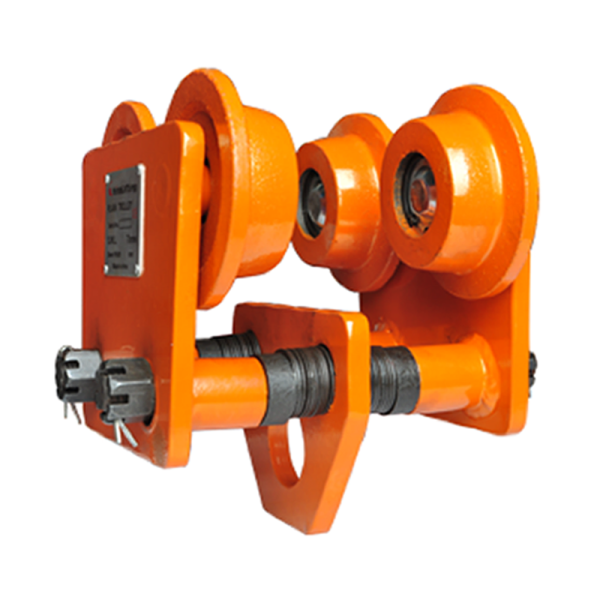

GCL type geared trolley have 5 specifications from1/2to 5t.The geared trolley is hand-operafed by fulling the hand-chain.Running on the bottom flange of monorail.with the screw hanger to adjust the width of i-beam.
They are widely used in factories, mines, wharves.docks, warehouses and engine rooms for installation of equipment and conveyance of goods, they are especially suitable for maintenance and repairing of equipment in places where no power supply is available.
| Model | GCL-A0.5 | GCL-A1 | GCL-A1.5 | GCL-A2 | GCL-A3 | GCL-A5 | GCL-A10 | GCL-A20 | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Running test load(kN) | 7.35 | 14.71 | 22.06 | 29.42 | 44.13 | 61.29 | 122.58 | 245.7 | |
| Min radius of curve(m) | 0.8 | 0.9 | 1 | 1 | 1.2 | 1.3 | 2 | 3.5 | |
| Dimensions(mm) | A | 186-236 | 263-303 | 245-310 | 260-317 | 284-333 | 322-355 | 525 | 600 |
| B1 | 174 | 206 | 219 | 233 | 276 | 302 | |||
| B2 | 194 | 236 | 250 | 268 | 322 | 362 | 424 | 555 | |
| C | 176 | 208 | 225 | 247 | 295 | 342 | 396 | 498 | |
| H | 95 | 111 | 121 | 134 | 157 | 185 | 190 | 233 | |
| F | 1.5-3 | 2-3.5 | |||||||
| I-beam commended(mm) | 50-152 | 64-203 | 74-203 | 88-203 | 100-203 | 114-203 | 124-305 | 136-305 | |
| Net Weight(kg) | 5 | 9 | 11.5 | 14 | 24 | 37 | |||
